Name: ifm Electronic E12283 Cable connection Plug, straight 5 m No. of pins (RJ): 4 1 pc(s) Piece
Brand: ifm Electronic
SKU: 3318916

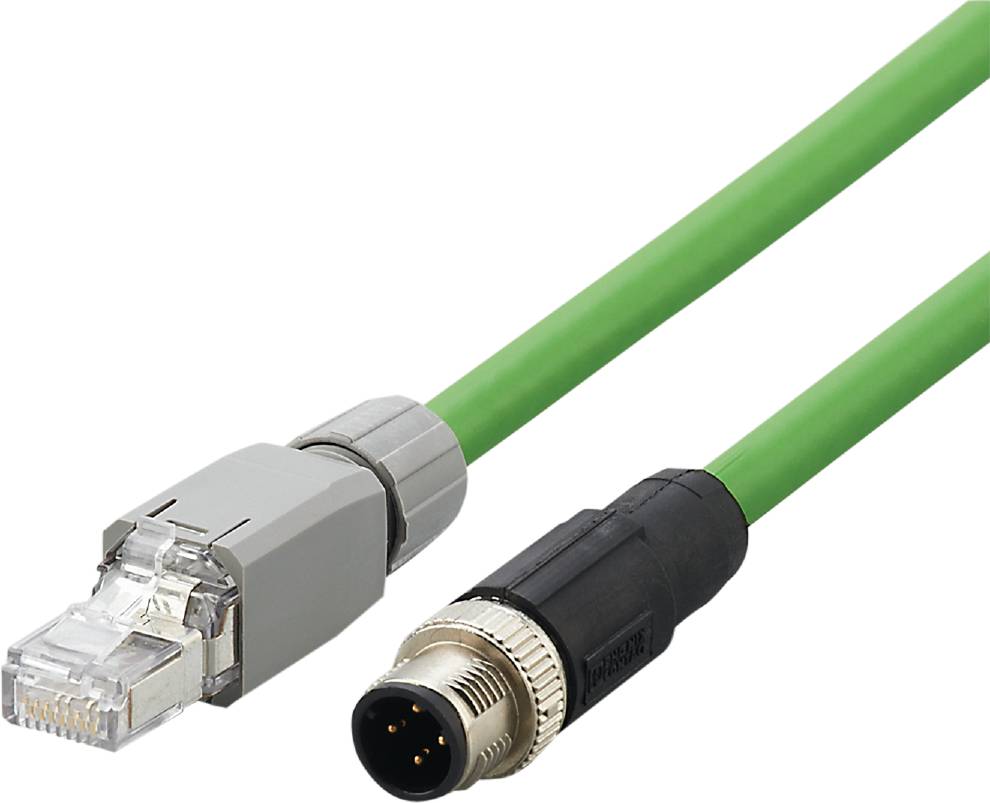

Two cables, one with an RJ45 plug, the other with an M12 plug, both green and used for industrial networks.

Image similar

Product type

Cable connection

Connector type

Plug, straight

Connector standard

RJ45

Connection side A

M12

Connection side B

RJ45

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm E12283 connection cable

For connection to the sensor's parameterization interface
For reliable signal transmission

Technical specifications

Ambient temperature-1 [°C]: -25...70
Application: Crossed patch cable; patch cable
Design: Ethernet cable, D-coded
Special feature: Shielded cable
Weight [g]: 371,300
Cable 2 - Cable: 5 m, PVC, green, Ø 6.2 mm, shielded; 4 x 0.38 mm²
Protection class IP 67; IP 42; (M12 plug / RJ45 plug)
Plug connection: 1.Plug M12 - Pin layout: 0138 - Plug connection: 1 x M12, straight; Coding: D; Handle body: PUR; Locking: Die-cast zinc, nickel-plated; tightening torque: 0.7...0.9 Nm / 3.Connector RJ45 - pin layout: 0134 - plug connection: 1 x RJ45, straight; grip body: PC; shielded connection cable: shielded
Material grip body: PUR / PC
Material swivel nut: Die-cast zinc, nickel-plated

Packaging type: Piece

Type: E12283

Product type: Cable connection

Connector type: Plug, straight

Connector standard: RJ45

Connection side A: M12

Connection side B: RJ45

No. of pins: 4

Cable length: 5 m

Jacket material: PVC

Connector cross-section (max.): 0.38 mm²

Outside Ø: 6.2 mm

Cross-section (sensor/actuator wiring): 0.38 mm²

Connection: M12 plug

Coding: D

max. cross section: 0.38 mm²

Features: D-coded

Min. temperature: -25 °C

Max. temperature: 70 °C

Seal type: Screw-on

Manufacturer part #: E12283

Content: 1 pc(s)

Cable Ø: 6.2 mm

Cable Ø (max.): 6.2 mm

Cable Ø range: 6.2 mm (max)

UKCA: yes
