Name: ifm Electronic E12315 Terminator connector Plug, straight No. of pins (RJ): 4 1 pc(s) Piece
Brand: ifm Electronic
SKU: 3315794

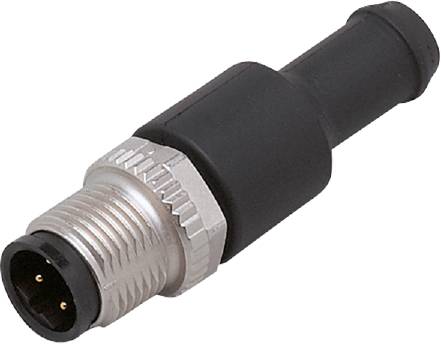

A black, round M12 plug with metal threading and cable, used for industrial connections.

Image similar

Product type

Terminator connector

Connector type

Plug, straight

Connector standard

Profibus

Connection side A

M12

Connection side B

Terminator

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm E12315 terminating resistor plug

Reliable connection technology for PROFIBUS subscribers
High protection class to meet the requirements of harsh industrial ambient
High operating temperature range
Gold plated contacts for reliable electrical connections
Good electromagnetic compatibility thanks to shielded cable

Technical specifications

Dimensions [mm] 14.5 x 14.5 x 48.5
Ambient temperature-1 [°C]: -25...85
Special feature: Silicon-free; gold-plated contacts
Weight [g]: 9,900
IP 67 protection
Silicone-free: Yes
Plug connection: Plug - pin layout: 0090 - plug connection: 1 x M12, straight; coding: B; grip body: PUR; locking: Brass, nickel-plated; contacts: gold-plated; tightening torque: 0.6 Nm
Current carrying capacity total [A]: 4; (...40 °C)
Material grip body: PUR
Material swivel nut: Nickel-plated brass

Packaging type: Piece

Type: E12315

Product type: Terminator connector

Connector type: Plug, straight

Connector standard: Profibus

Connection side A: M12

Connection side B: Terminator

No. of pins: 4

Jacket material: PUR

Connection: M12 plug

Thread type (wiring and installation): M12

Coding: B

Contact surface: Gold plated contacts

Features: Silicone-free

Min. temperature: -25 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: E12315

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes
