Image similar
ifm Electronic E33434 Process adapter E33434 1 pc(s)
Product type
Process adapter
Type
E33434
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

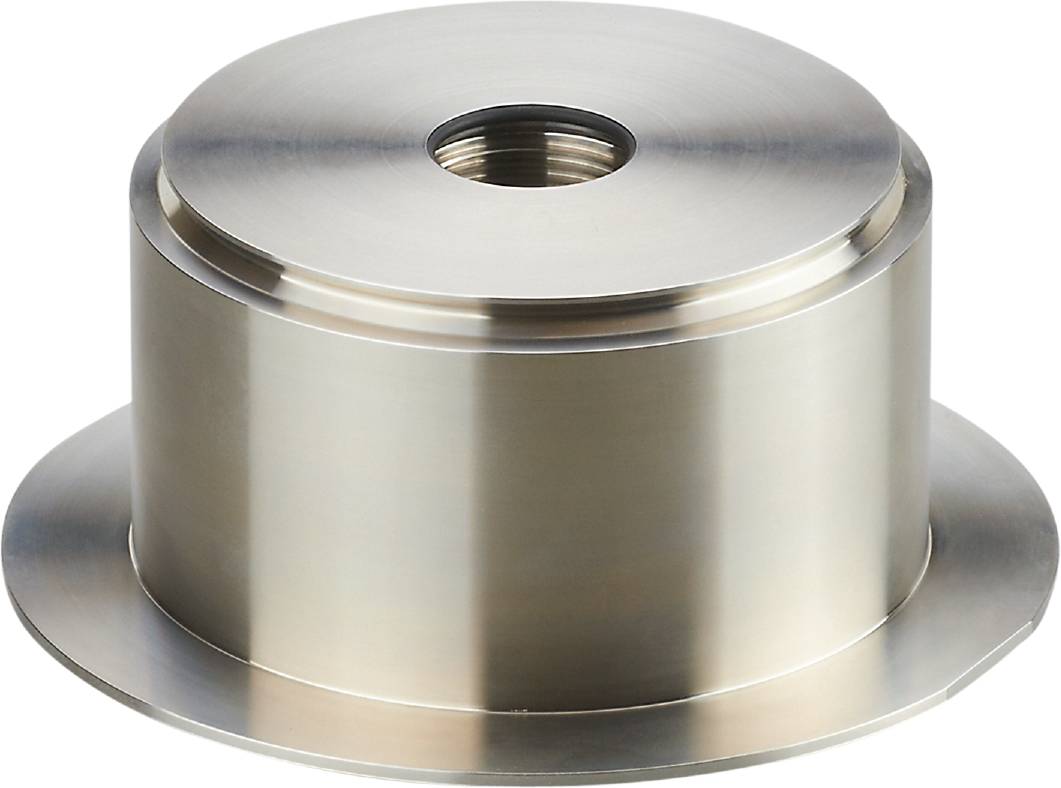

Ifm E33434 Process adapter
- For fitting process sensors in tanks
- Simple, fast and secure mounting
- Particularly suitable for use in hygienic applications
- Adapter made of stainless steel for the requirements of the food and beverage industry
- High compressive strength
Technical specifications
- Sealing ring
- Design: Accessories for, PY200x, PM17xx, PI27xx, PG27xx, : Rosemount 1199 (SSW) Tank Spud Seal
- Compressive strength [bar]: 34
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 1602,000
- Standard DIN 11866: H4
- Process connection: Tank Spud Rosemount 1199 (SSW) Tank Spud Seal
- G 1 Aseptoflex Vario sensor connection
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Materials in contact with the Medium: 1.4435 (stainless steel / 316L) ; Surface finish : Ra<0.4 / Rz 4; O-rings: EPDM
- Product type
Process adapter
- Type
E33434
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321040 ifm Electronic E33434 Process adapter E33434 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321040 ifm Electronic E33434 Process adapter E33434 1 pc(s)
Description
Ifm E33434 Process adapter
