ifm Electronic E33701 Adapter E33701 1 pc(s)
Product type
Adapter
Type
E33701
Content
1 pc(s)
Weight
0.1030 kg
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

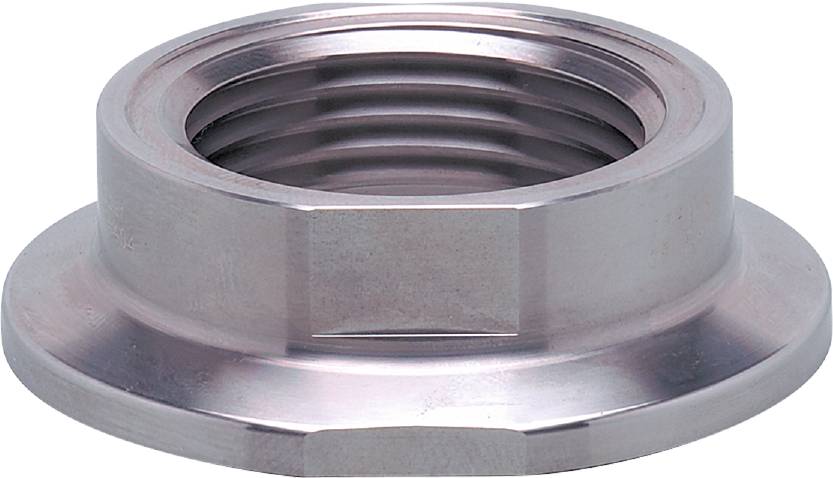

Ifm E33701 terminal adapter
- For the installation of process sensors in containers or pipes
- Simple, fast and secure mounting
- Particularly suitable for use in hygienic applications
- Adapter made of stainless steel for the requirements of the food and beverage industry
- High compressive strength
Technical specifications
- Seal: Metal on metal
- Compressive strength [bar]: 16
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 101,000
- Standard DIN 11866: H4
- MAWP for applications according to CRN [bar]: 16
- Process connection: Clamp DN25...DN40 (1...1.5") DIN 32676 (ISO 2852)
- G 1 internal thread Aseptoflex Vario
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Materials in contact with the Medium: 1.4435 (stainless steel / 316L) ; Surface finish : Ra<0.4 / Rz 4
- Product type
Adapter
- Type
E33701
- Content
1 pc(s)
- Weight
0.1030 kg
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3317442 ifm Electronic E33701 Adapter E33701 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317442 ifm Electronic E33701 Adapter E33701 1 pc(s)
Description
Ifm E33701 terminal adapter
