ifm Electronic E33722 Adapter E33722 1 pc(s)
Product type
Adapter
Type
E33722
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

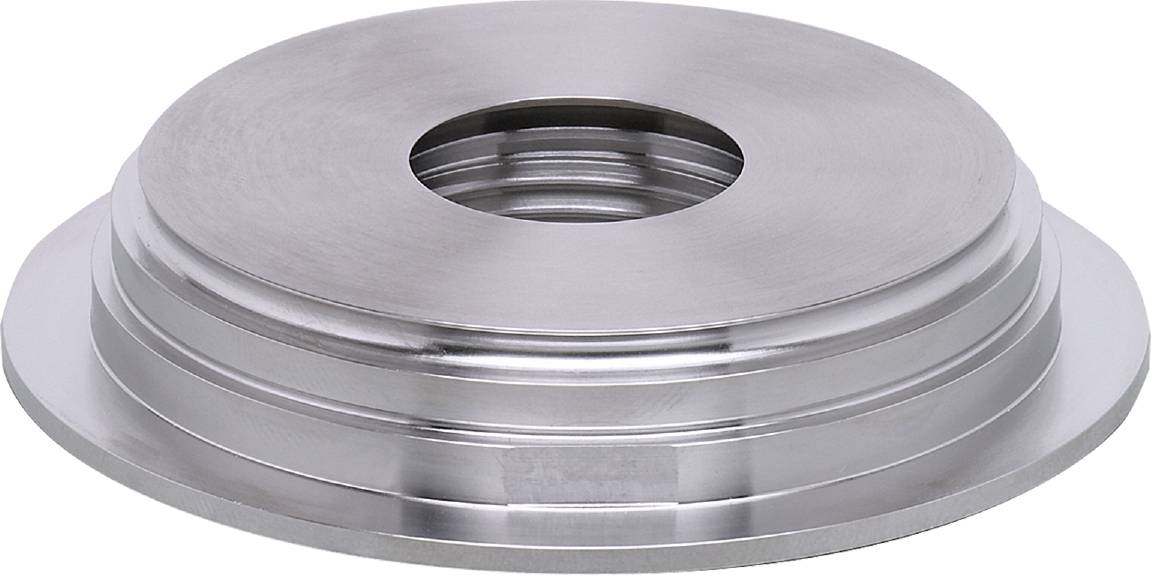

Ifm E33722 terminal adapter
- For the installation of process sensors in pipes
- Simple, fast and secure mounting
- Particularly suitable for use in hygienic applications
- Adapter made of stainless steel for the requirements of the food and beverage industry
- High compressive strength
Technical specifications
- Seal: Metal on metal
- Compressive strength [bar]: 25
- Pressure device guideline: A possible classification according to the DGRL must be performed according to application-specific and by the user / operator.
- Weight [g]: 481,000
- Standard DIN 11866: H4
- Process connection: Varivent shape N, DN40...DN150 (1.5...6"), Ø 68 mm
- G 1 internal thread Aseptoflex Vario
- Safety instructions: The compatibility between Medium and product material must be checked in all applications.
- Materials in contact with the Medium: 1.4435 (stainless steel / 316L) ; Surface finish : Ra<0.4 / Rz 4
- Product type
Adapter
- Type
E33722
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318771 ifm Electronic E33722 Adapter E33722 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318771 ifm Electronic E33722 Adapter E33722 1 pc(s)
Description
Ifm E33722 terminal adapter
