Name: ifm Electronic E70170 Sensor/actuator connector 7/8" Socket, straight 1 pc(s) Piece
Brand: ifm Electronic
SKU: 3315843

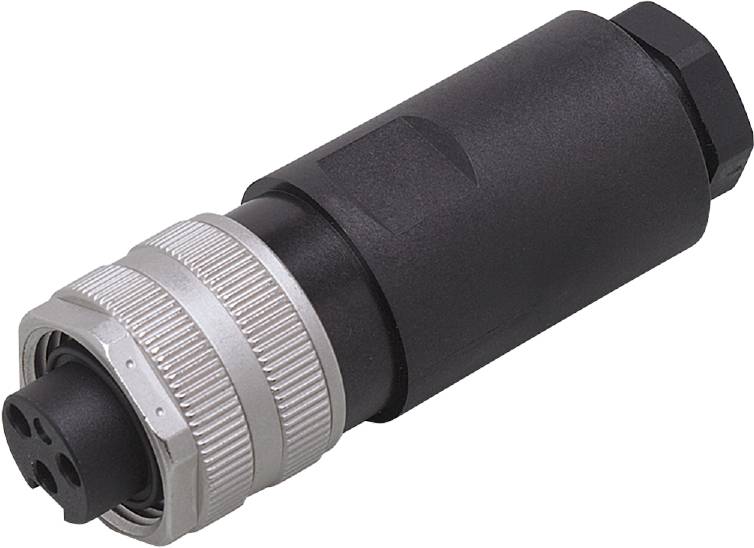

Black cylindrical plug with a silver ridged ring. Suitable for audio devices or technical applications.

Image similar

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

7/8"

Connection side B

Customisable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm E70170 Pre-assembled socket

Gold plated contacts for reliable electrical connections
High protection class to meet the requirements of harsh industrial ambient
High operating temperature range
Secure cable connection by means of screw terminals

Technical specifications

Dimensions [mm] 27 x 27 x 83
Ambient temperature-1 [°C]: -25...85
OPERATING VOLTAGE [V] < 300 AC/DC
Weight [g]: 54,200
Connection/terminals ready for assembly: Terminals: ...1.5 mm²; cable jacket: Ø 8...10 mm
IP 67 protection
Plug connection: Socket - pin layout: 0253 - plug connection: 1 x 7/8", straight; handle body: PBT; lock: Zinc die-cast
Current carrying capacity total [A]: 12
Material grip body: PBT
Material nut: Die-cast zinc

Packaging type: Piece

Type: E70170

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Sensor connector

Connection side A: 7/8"

Connection side B: Customisable

Nominal voltage: 300 V DC/AC

Connector cross-section (max.): 1.5 mm²

Cross-section (sensor/actuator wiring): 1.5 mm²

Connection: Socket

Thread type connection side: 7/8"

Thread type (wiring and installation): 7/8"

Contact material: Gold plated contacts

Contact surface: Gold plated contacts

Min. temperature: -25 °C

Max. temperature: 85 °C

Manufacturer part #: E70170

Content: 1 pc(s)

Cable Ø (max.): 10 mm

Cable Ø up to: 8 mm

Cable Ø range: 8 - 10 mm

RoHS-compliant: Yes

UKCA: yes
