Name: ifm Electronic EBT009 Splitter cable M12 Adapter No. of pins (RJ): 5, 5 1 pc(s)
Brand: ifm Electronic
SKU: 3316009

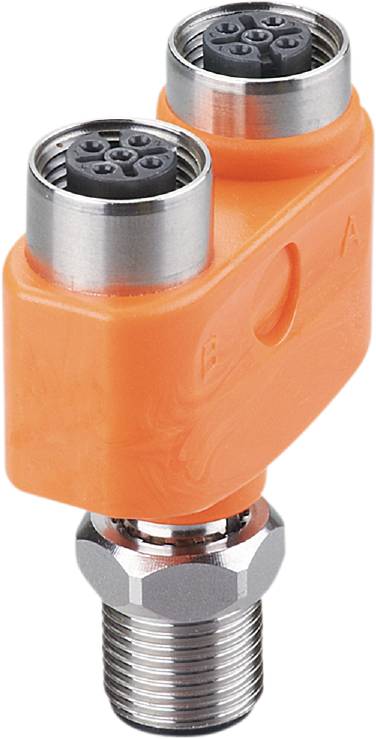

Orange tool component with a cylindrical connection at the top and a shimmering surface at the bottom.

Image similar

Product type

Splitter cable

Connector type

Adapter

Connection side A

M12

Connection side B

M12

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm EBT009 Y-distributor

Resistant to high pressure cleaning with aggressive cleaning agents
For use in applications with many inputs and outputs in confined spaces
Visual and haptic labeling of the ports
High protection class for the requirements of the food and drink industry
Reliable protection of the O-ring against destruction by mechanical fixed stop

Technical specifications

Ambient temperature-1 [°C]: -25...100
Application: Logical OR link
Special feature: Silicon-free; gold-plated contacts
Operating voltage [V]: < 60 AC/DC; (cULus:30 AC / 42 DC)
Weight [g]: 35,700
Storage humidity [%]: 10...100
Storage temperature [°C]: -25...55
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class: II
Silicone-free: Yes
Plug connection: Plug - Pin layout: 0063 - Plug connection: 1 x M12; Coding: A; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 2...1.5 Nm / Socket - Pin layout: 0017 - Plug connection: 0.6 x M12; Coding: A; Lock: 1.4404 (Stainless steel / 316L); Contacts: Gold-plated; Tightening torque: 0.6...1.5 Nm
Current carrying capacity total [A]: 4
Current carrying capacity total (UL) [A]: 3
Current rating per module / slot [A]: 4
Cap nut material: 1.4404 (stainless steel / 316L)

Type: EBT009

Product type: Splitter cable

Connector type: Adapter

Connection side A: M12

Connection side B: M12

No. of pins: 5
5

Nominal voltage: 60 V DC/AC
42 V DC

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A
A

Contact surface: Gold plated

Features: Silicone-free

Min. temperature: -25 °C

Max. temperature: 100 °C

Manufacturer part #: EBT009

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: yes
