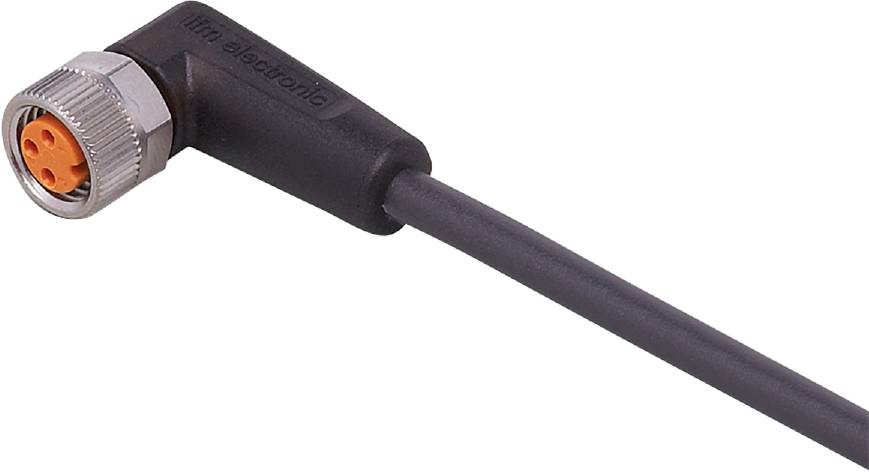

A black cable with a plug, partially visible.

Image similar

Product type

Cable

Connector type

Socket, right angle

Connection side A

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm EVC147 connector cable with socket

Resistant to oils and coolants
Durable, reliable sealing even with tool-free mounting
High protection class to meet the requirements of harsh industrial ambient
Vibration and shock proof thanks to the swivel nut and vibration proof
LEDs are clearly visible even in strong light

Technical specifications

Dimensions [mm] 19 x 10 x 25.5
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
Drag-chain compatibility: Bending radius when used flexibly: Min. 10 x cable diameter; traverse speed: Max. 3.3 m/s at 5 m horizontal traverse length and max. Acceleration of 5 m/s²; bending cycles: > 5 MIO.; torsional load: ± 180 °/m.
Drag chain capability available: Yes
Ambient temperature-1 [°C]: -25...90
Special feature: Silicone-free; halogen-free; gold-plated contacts; suitable for drag chains
Operating voltage [V]: 10... 36 DC
Electrical version: PNP
Weight [g]: 52,900
Cable: 2 m, PUR, halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm)
MTTF: 31710
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class III
Silicone-free: Yes
Plug connection: Socket - pin layout: 0013 - plug connection: 1 x M8, angled; coding: A; locking: Brass, nickel-plated; Contacts: gold-plated; tightening torque: 0.3...0.5 Nm
Current carrying capacity total [A]: 3
Ambient temperature, moving [°C]: -25...90
Material swivel nut: Nickel-plated brass

Type: EVC147

Product type: Cable

Connector type: Socket, right angle

Connection side A: M8

Connection side B: Cable, open end

No. of pins: 3

Cable length: 2 m

Jacket material: PUR

Nominal voltage: 36 V DC

Connector cross-section (max.): 0.25 mm²

Outside Ø: 3.7 mm

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: M8 socket

Factory colour: Multicolour

Thread type connection side: M8

Thread type (wiring and installation): M8

Cable colour: Multicolour

Coding: A

Contact material: Gold plated

Contact surface: Gold plated

max. cross section: 0.25 mm²

: IP67/IP69K

Features: Halogen-free

Min. temperature: -25 °C

Max. temperature: 90 °C

Manufacturer part #: EVC147

Content: 1 pc(s)

Cable Ø: 3.7 mm

Cable Ø (max.): 3.7 mm

Cable Ø range: 3.7 mm (max)

RoHS-compliant: Yes

Version: Cable

UKCA: yes
