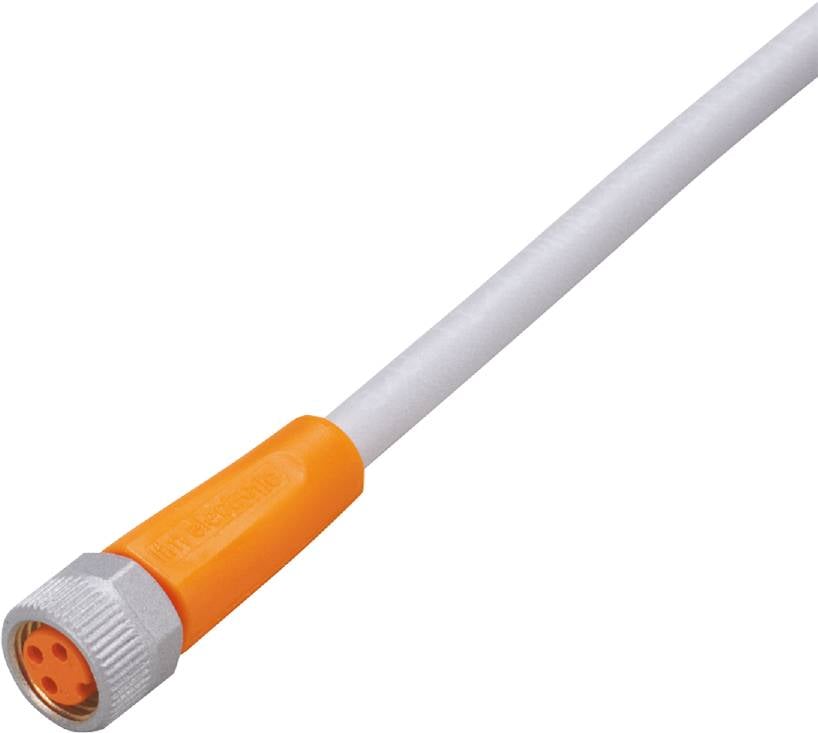

ifm Electronic EVW069 Cable Socket, straight 5 m No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Connector type
Socket, straight
Connection side A
M8
Connection side B
Cable, open end
No. of pins
3
Datasheet (PDF)
Technical specifications
- Type
EVW069
- Product type
Cable
- Connector type
Socket, straight
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
5 m
- Jacket material
PUR
- Nominal voltage
50 V AC
60 V DC
- Connector cross-section (max.)
0.25 mm²
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
M8 socket
- Coding
A
- Contact surface
Gold plated
- Features
Spark-proof
- Min. temperature
-25 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
EVW069
- Content
1 pc(s)
- Cable Ø
4.5 mm
- RoHS-compliant
Yes
- UKCA
yes
