Image similar
ifm Electronic Fibre optics E20054 E20054 1 pc(s)
Product type
Fibre optics
Type
E20054
Cable length
600 mm
Enclosure material
Aluminium
Light emission
90 degree angled
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

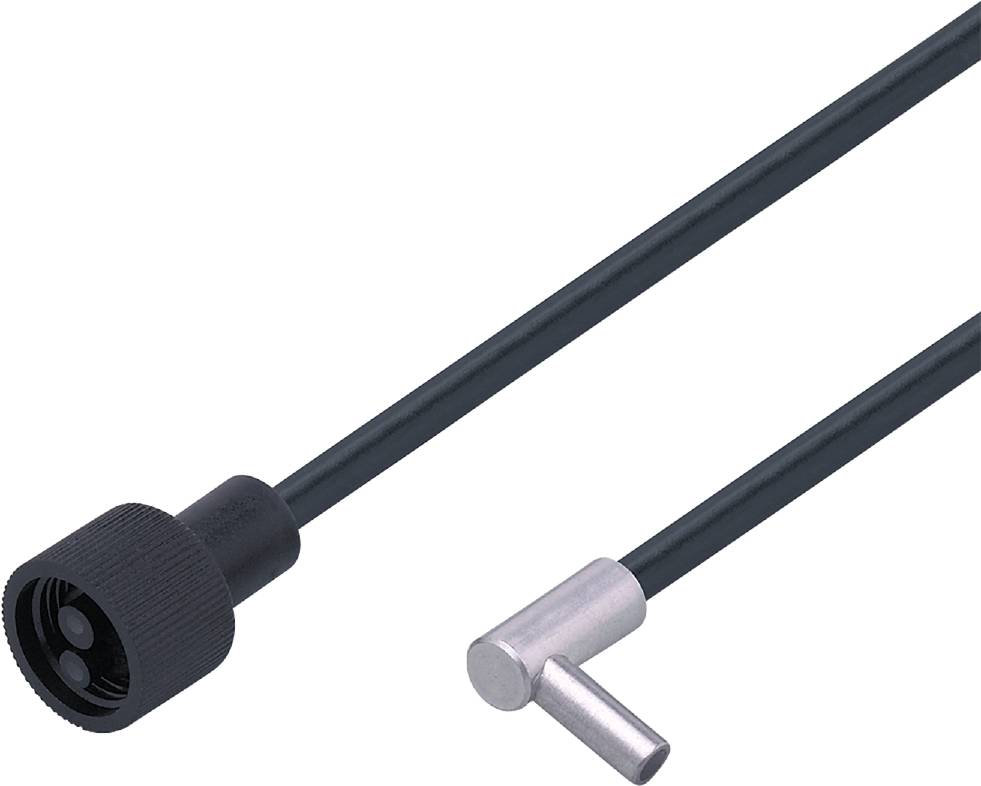

Ifm E20054 reflex light sensor
- For installation in awkward spaces
- Operates as light sensor
- High sensor width
- Angled design for use in cramped spaces
- Small bending radius
Our service for you
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -20...80
- Application: For use in industrial applications
- Probe type: Angled
- FOA-R01 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 47,000
- Light guide material: Aluminium
- Light conductor sheath material PVC
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20
- Probe diameter [mm]: 4
- Probe length [mm]: 10
- Feeler gauge for fiber optics – OCF [mm]: 340
- Scan width Fibre optics - OKF [mm]: 40
- Feeler gauge for fiber optics – OOF [mm]: 200
- Feeler gauge for fiber optics – OUF [mm]: 40
- Scan width using fiber optic amplifier type OCF; OKF; OOF; OUF
- Product type
Fibre optics
- Type
E20054
- Cable length
600 mm
- Enclosure material
Aluminium
- Light emission
90 degree angled
340 mm
- Features
Bend-proof cable
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Length
10 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 10 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319226 ifm Electronic Fibre optics E20054 E20054 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319226 ifm Electronic Fibre optics E20054 E20054 1 pc(s)
Description
Ifm E20054 reflex light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20054, please refer to its datasheet under 'downloadable documents'
