ifm Electronic Fibre optics E20056 E20056 Retroreflective 1 pc(s)
Product type
Fibre optics
Functions
Retroreflective
Type
E20056
Cable length
600 mm
Enclosure material
Aluminium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

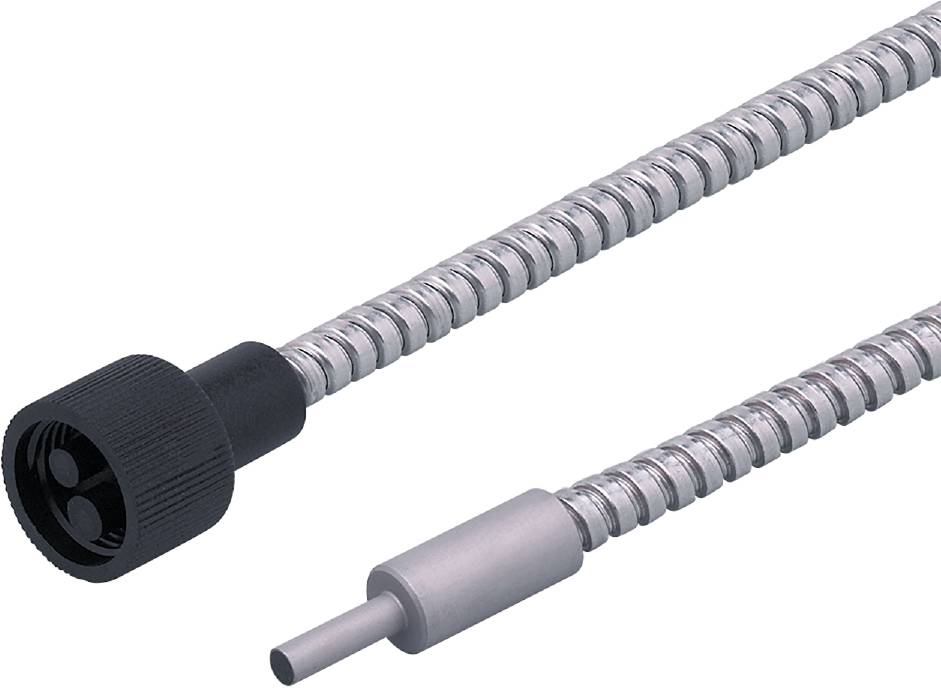

Ifm E20056 reflective light sensor
- For high temperature applications
- Covering sleeve made of aluminum for use up to 290 ° C.
- High sensor width
- Resistant to a variety of aggressive chemicals
- Small bending radius
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -40...290
- Application: High temperature resistance; rugged design for use in harsh industrial environments
- Probe head type: Straight
- FOA-R01 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 51,500
- Light guide material: Aluminium
- Light conductor sheath material: Aluminium
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20; (if laid fixed)
- Probe diameter [mm]: 3
- Feeler gauge for fiber optics – OCF [mm]: 310
- Scan width Fibre optics - OKF [mm]: 40
- Feeler gauge for fiber optics – OOF [mm]: 200
- Feeler gauge for fiber optics – OUF [mm]: 40
- Scan width using fiber optic amplifier type OCF; OKF; OOF; OUF
- Product type
Fibre optics
- Type
E20056
- Functions
Retroreflective
- Cable length
600 mm
- Enclosure material
Aluminium
- Material properties
acid-resistant
310 mm
- Min. temperature
-40 °C
- Max. temperature
290 °C
- (Ø)
3 mm
- Dim
(Ø) 3 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319213 ifm Electronic Fibre optics E20056 E20056 Retroreflective 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319213 ifm Electronic Fibre optics E20056 E20056 Retroreflective 1 pc(s)
Description
Ifm E20056 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20056, please refer to its datasheet under 'downloadable documents'
