ifm Electronic Fibre optics E20058 E20058 1 pc(s)
Packaging type
Piece
Product type
Fibre optics
Type
E20058
Cable length
600 mm
Size
4 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

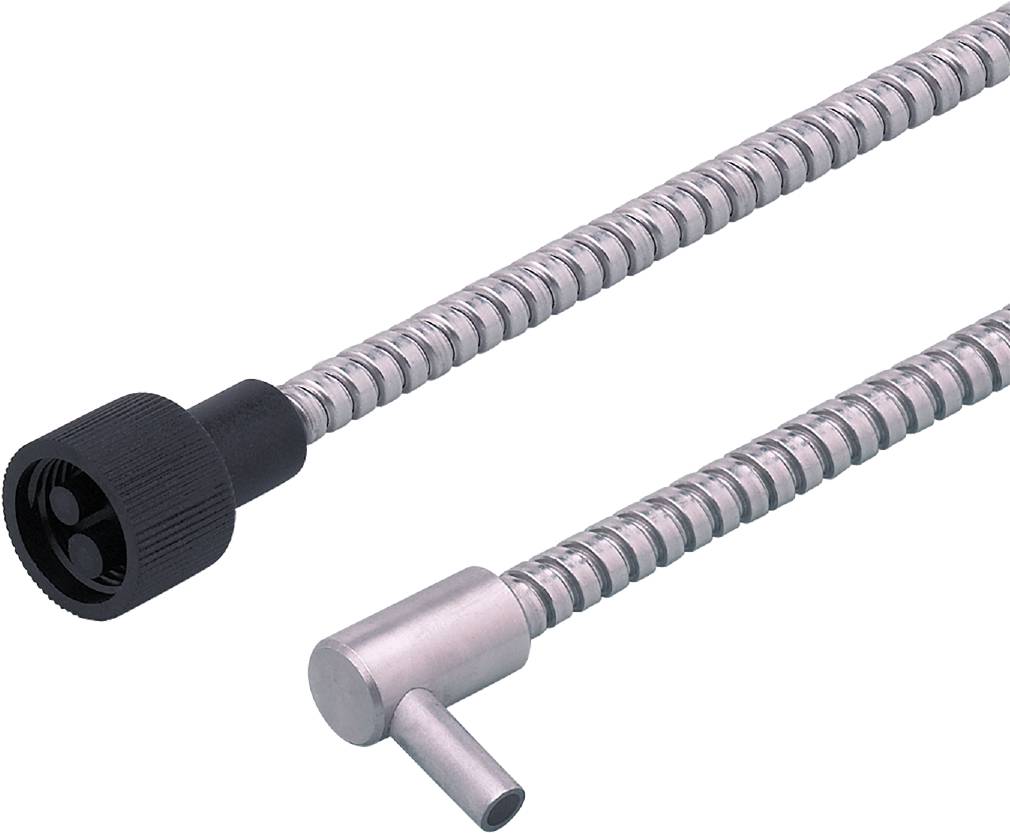

Ifm E20058 reflective light sensor
- For high temperature applications
- Covering sleeve made of aluminum for use up to 290 ° C.
- High sensor width
- Angled design for use in cramped spaces
- Small bending radius
Our service for you
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -40...290
- Application: For use in industrial applications; robust design for use in harsh industrial environments
- Probe type: Angled
- FOA-R01 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 51,500
- Light guide material: Aluminium
- Light conductor sheath material: Aluminium
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20; (if laid fixed)
- Probe diameter [mm]: 4
- Probe length [mm]: 10
- Feeler gauge for fiber optics – OCF [mm]: 290
- Scan width Fibre optics - OKF [mm]: 40
- Feeler gauge for fiber optics – OOF [mm]: 200
- Feeler gauge for fiber optics – OUF [mm]: 40
- Scan width using fiber optic amplifier type OCF; OKF; OOF; OUF
- Packaging type
Piece
- Product type
Fibre optics
- Type
E20058
- Cable length
600 mm
- Size
4 mm
- Enclosure material
Aluminium
- Light emission
90 degree angled
290 mm
- Min. temperature
-40 °C
- Max. temperature
290 °C
- Length
10 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 10 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319691 ifm Electronic Fibre optics E20058 E20058 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319691 ifm Electronic Fibre optics E20058 E20058 1 pc(s)
Description
Ifm E20058 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20058, please refer to its datasheet under 'downloadable documents'
