ifm Electronic Fibre optics E20129 E20129 1 pc(s)
Packaging type
Piece
Product type
Fibre optics
Type
E20129
Cable length
600 mm
Size
3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

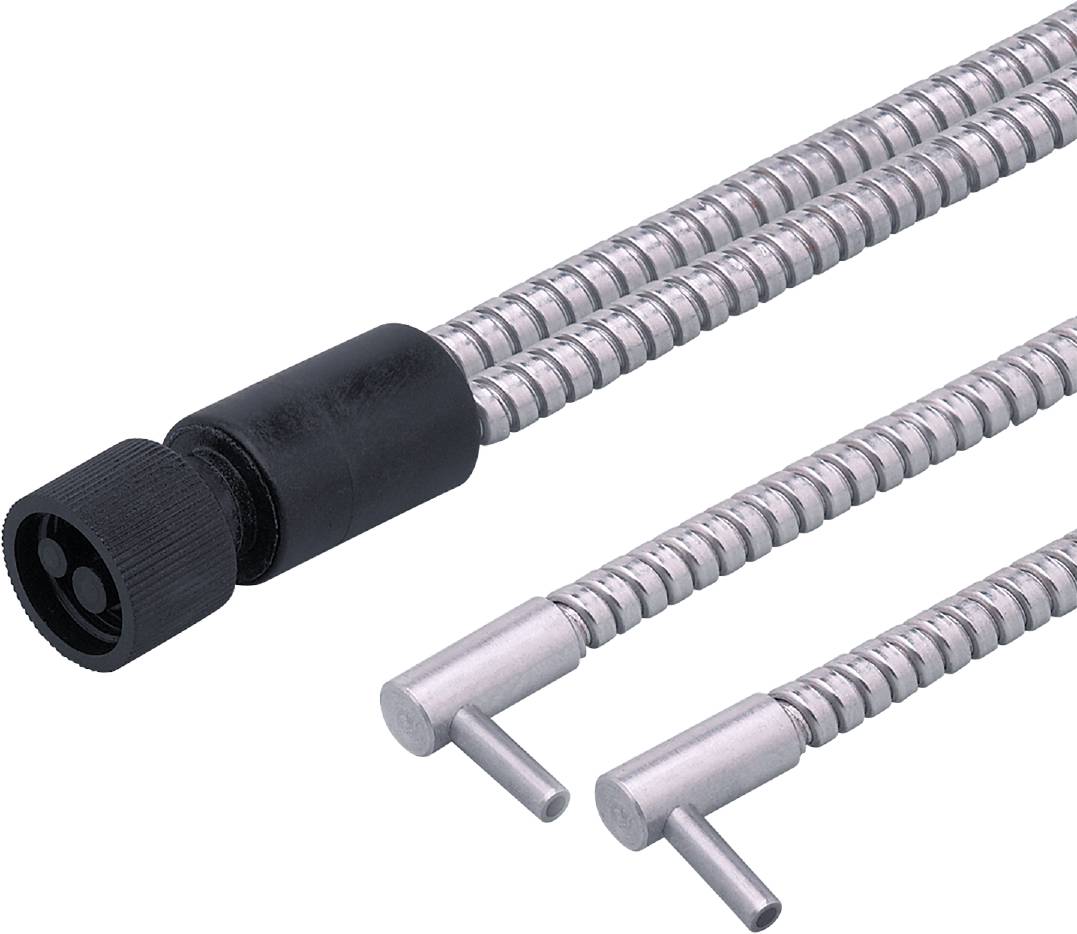

Ifm E20129 One-way light barrier
- For high temperature applications
- Covering sleeve made of aluminum for use up to 290 ° C.
- Installation in inaccessible places
- Angled design for use in cramped spaces
- Small bending radius
Our service for you
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -40...290
- Application: High temperature resistance; rugged design for use in harsh industrial environments
- Probe type: Angled
- FOA-R02 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 69,000
- Light guide material: Aluminium
- Light conductor sheath material: Aluminium
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20; (if laid fixed)
- Fibre optic range - OCF [mm]: 990
- Fibre optic range - OKF [mm]: 120
- Range fiber optics - OOF [mm]: 400
- Fiberoptic range - OUF [mm]: 120
- Range with fiber optic amplifier type: OCF, OKF, OOF; OUF
- Probe diameter [mm]: 3
- Probe length [mm]: 10
- Packaging type
Piece
- Product type
Fibre optics
- Type
E20129
- Cable length
600 mm
- Size
3 mm
- Enclosure material
Aluminium
- Light emission
90 degree angled
990 mm
- Min. temperature
-40 °C
- Max. temperature
290 °C
- Length
10 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 10 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320425 ifm Electronic Fibre optics E20129 E20129 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320425 ifm Electronic Fibre optics E20129 E20129 1 pc(s)
Description
Ifm E20129 One-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20129, please refer to its datasheet under 'downloadable documents'
