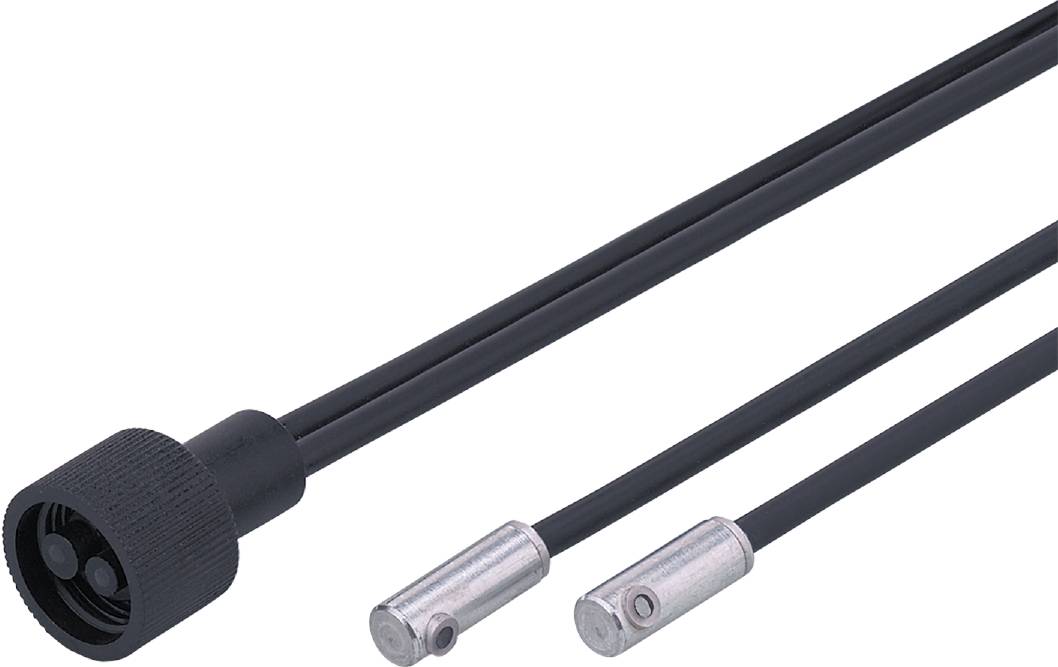

ifm Electronic Fibre optics E20228 E20228 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fibre optics
Type
E20228
Enclosure material
Aluminium
Light emission
90 degree angled
Max. range
400 mm
Datasheet (PDF)
Highlights & Details
Ifm E20228 One-way Light Barrier
- For installation in awkward spaces
- Operating as one way light barrier
- High volume output
- Angled design for use in cramped spaces
- Small bending radius
Our service for you
Technical specifications
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -20...80
- Application: For use in industrial applications
- Design: 90° rotation of the light beam
- Probe type: Angled
- FOA-R02 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 54,500
- Light guide material: Aluminium
- Light conductor sheath material PVC
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20
- Fibre optic range - OKF [mm]: 120
- Range fiber optics - OOF [mm]: 400
- Fiberoptic range - OUF [mm]: 120
- Range with fiber optic amplifier type: OKF; OUF; OOF
- Probe diameter [mm]: 5
- Product type
Fibre optics
- Type
E20228
- Enclosure material
Aluminium
- Light emission
90 degree angled
400 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Length
600 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 600 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320129 ifm Electronic Fibre optics E20228 E20228 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320129 ifm Electronic Fibre optics E20228 E20228 1 pc(s)
Description
Ifm E20228 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20228, please refer to its datasheet under 'downloadable documents'
