ifm Electronic Fibre optics E20230 E20230 1 pc(s)
Packaging type
Piece
Product type
Fibre optics
Type
E20230
Enclosure material
Stainless steel
Material properties
rust-proof
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

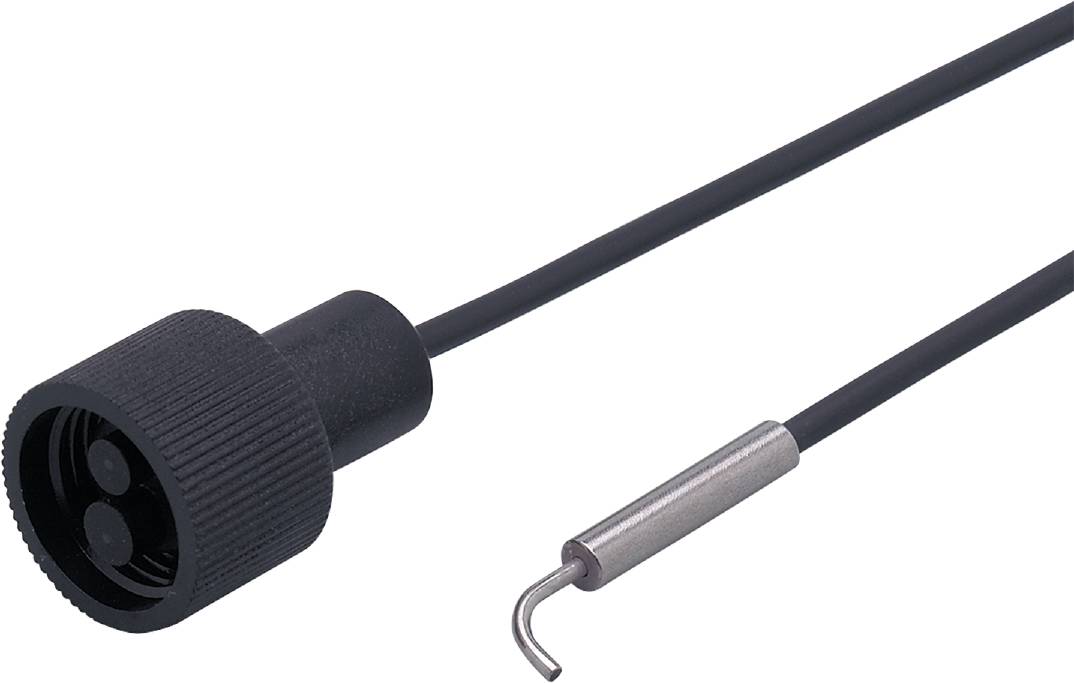

Ifm E20230 reflex light sensor
- For installation in awkward spaces
- Operates as light sensor
- For use in the near area
- Angled design for use in cramped spaces
- Small bending radius
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -20...80
- Application: For use in industrial applications
- Probe type: Angled
- FOA-R01 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 37,000
- Fibre optic material 1.4301 (stainless steel / 304)
- Light conductor sheath material PVC
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20
- Probe diameter [mm]: 1
- Feeler gauge for fiber optics – OCF [mm]: 40
- Scan width Fibre optics - OKF [mm]: 6
- Feeler gauge for fiber optics – OOF [mm]: 24
- Feeler gauge for fiber optics – OUF [mm]: 6
- Scan width using fiber optic amplifier type OCF; OKF; OOF; OUF
- Packaging type
Piece
- Product type
Fibre optics
- Type
E20230
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Light emission
90 degree angled
40 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Length
600 mm
- (Ø)
1 mm
- Dim
(Ø x L) 1 mm x 600 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320226 ifm Electronic Fibre optics E20230 E20230 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320226 ifm Electronic Fibre optics E20230 E20230 1 pc(s)
Description
Ifm E20230 reflex light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20230, please refer to its datasheet under 'downloadable documents'
