Image similar
ifm Electronic Fibre optics E20494 E20494 Retroreflective 1 pc(s)
Product type
Fibre optics
Functions
Retroreflective
Type
E20494
Cable length
600 mm
Enclosure material
Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

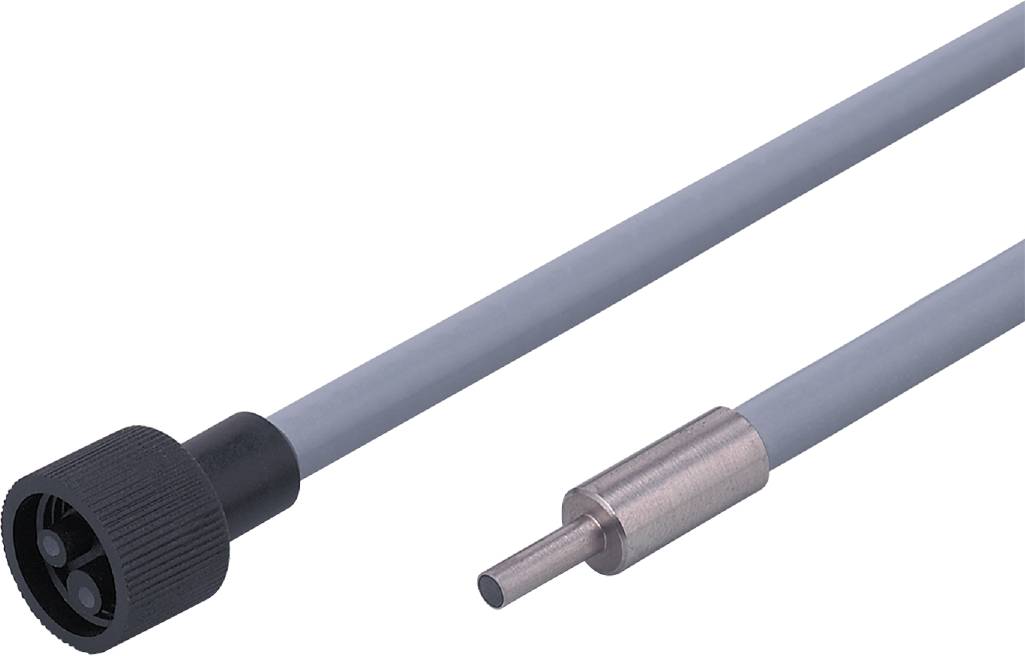

Ifm E20494 reflex light switch
- For high temperature applications
- Jacket made of metal silicone for use up to 150°C.
- For installation in awkward spaces
- Resistant to a variety of aggressive chemicals
- Small bending radius
Technical specifications
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -20...150
- Application: High temperature resistance; rugged design for use in harsh industrial environments; resistant to a variety of aggressive chemicals
- Probe head type: Straight
- FOA-R01 fiber arrangement
- Total length [mm]: 600
- Weight [g]: 64,500
- Fibre optic material 1.4305 (stainless steel / 303)
- Optical fiber sheath material: Metal silicone
- Fibre optic material: Glass
- Minimum bend radius [mm]: 20
- Probe diameter [mm]: 3
- Probe length [mm]: 10
- Scan width Fibre optics - OKF [mm]: 40
- Feeler gauge for fiber optics – OOF [mm]: 200
- Feeler gauge for fiber optics – OUF [mm]: 40
- Scan width using fiber optic amplifier OKF; OUF; OOF
- Product type
Fibre optics
- Type
E20494
- Functions
Retroreflective
- Cable length
600 mm
- Enclosure material
Stainless steel
- Material properties
rust-proof
200 mm
- Features
acid-resistant
- Min. temperature
-20 °C
- Max. temperature
150 °C
- Length
10 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 10 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319478 ifm Electronic Fibre optics E20494 E20494 Retroreflective 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319478 ifm Electronic Fibre optics E20494 E20494 Retroreflective 1 pc(s)
Description
Ifm E20494 reflex light switch
This text is machine translated.
This text is machine translated.
Hints
For more information on this E20494, please refer to its datasheet under 'downloadable documents'
