Automation & PneumaticsAutomationIndustrial SensorsIndustrial Light Barriers & Photo Sensors

ifm Electronic Fibre optics E20506 E20506 1 pc(s)

EAN:
Part number:
Item no:

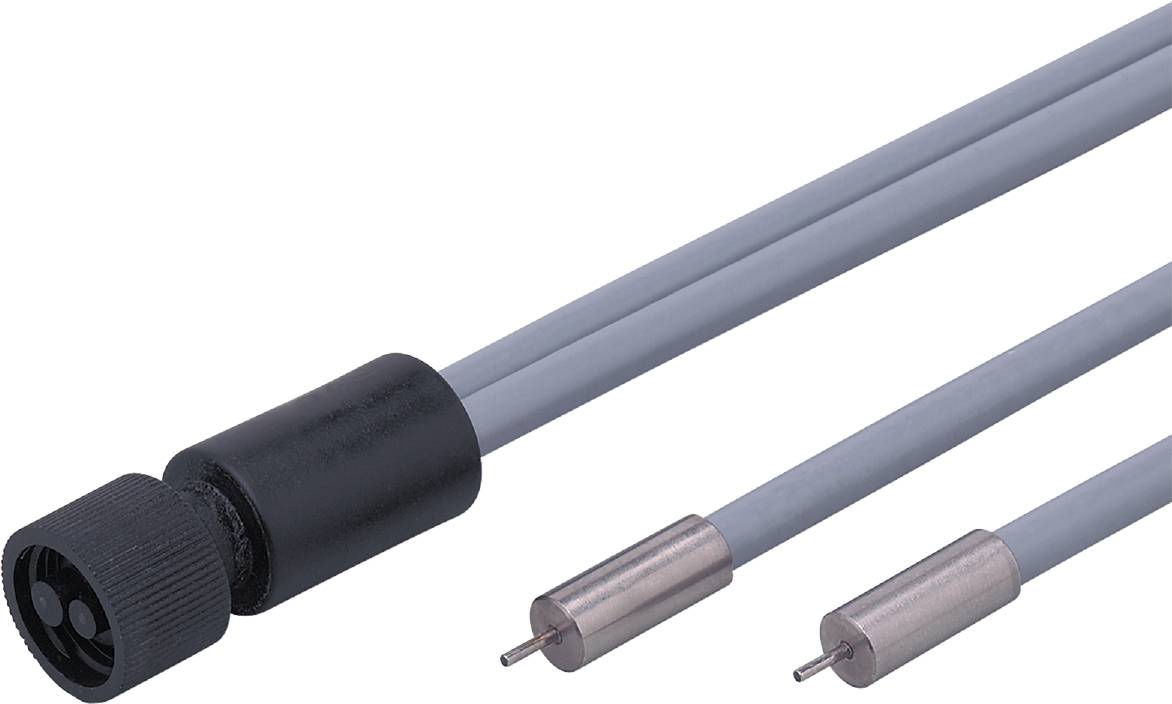

Grey metal pen with black and silver cap demonstrates the technique of an antenna rod or extension element.
Image similar
Packaging type
Piece
Product type
Fibre optics
Type
E20506
Cable length
600 mm
Enclosure material
Stainless steel
Datasheet (PDF)
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Ifm E20506 One-way Light Barrier

  • For high temperature applications
  • Jacket made of metal silicone for use up to 150°C.
  • For installation in awkward spaces
  • Resistant to a variety of aggressive chemicals
  • Small bending radius

Our service for you

Technical specifications

  • Functional principle opto: One-way light barrier
  • Ambient temperature-1 [°C]: -20...150
  • Application: High temperature resistance; rugged design for use in harsh industrial environments; resistant to a variety of aggressive chemicals
  • Probe head type: Straight
  • FOA-R02 fiber arrangement
  • Total length [mm]: 600
  • Weight [g]: 76,500
  • Fibre optic material 1.4305 (stainless steel / 303)
  • Optical fiber sheath material: Metal silicone
  • Fibre optic material: Glass
  • Minimum bend radius [mm]: 20
  • Fibre optic range - OKF [mm]: 50
  • Range fiber optics - OOF [mm]: 160
  • Fiberoptic range - OUF [mm]: 50
  • Range with fiber optic amplifier type: OKF; OUF; OOF
  • Probe diameter [mm]: 1
  • Probe length [mm]: 5
Packaging type

Piece

Product type

Fibre optics

Type

E20506

Cable length

600 mm

Enclosure material

Stainless steel

Material properties

acid-resistant

160 mm

Features

Bend-proof cable

Min. temperature

-20 °C

Max. temperature

150 °C

(Ø)

1 mm

Dim

(Ø) 1 mm

RoHS-compliant

Yes

Content

1 pc(s)

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3320252 ifm Electronic Fibre optics E20506 E20506 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3320252 ifm Electronic Fibre optics E20506 E20506 1 pc(s)

Description

Ifm E20506 One-way Light Barrier

This text is machine translated.

Hints

For more information on this E20506, please refer to its datasheet under 'downloadable documents'
