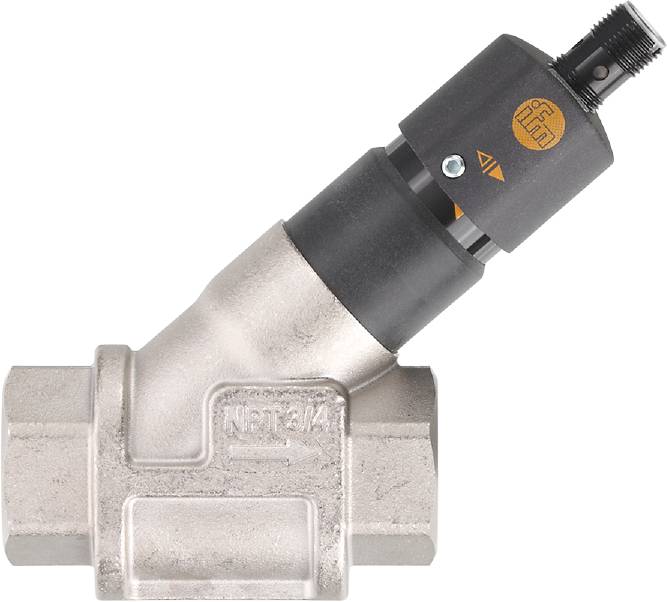

ifm Electronic Flow monitor SBN333 SBN333 Operating voltage (range): 10 - 30 V DC 1 pc(s)
Product type
Flow monitor
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Packaging type
Piece
Type
SBN333
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm SBN333 flow monitor
- Precise detection of flow in pipes
- Suitable for water, oil and glycol solutions
- Reliable return flow prevention with very fast response time
- Intuitive continuous adjustment of the switching point
- Robust housing with very high pressure resistance
Technical specifications
- Response time [s]: < 0.01
- Number of digital outputs: 1
- Number of inputs and outputs: Number of digital outputs: 1
- Display: Switch status 4 x LED, yellow
- Compressive strength [MPa]: 4
- Reproducibility percent of final value range: 1
- Output function: Closer
- Output signal: Switching signal
- Operating voltage [V]: 10...30 DC; (according to SEL/PEL)
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Compressive strength [bar]: 40
- Setting range [gpm]: 0.26...6.6
- Electrical version: PNP
- Total number of outputs: 1
- Weight [g]: 578,250
- Hysteresis [gpm]: 0.13...0.53
- Short-circuit protection: Yes
- Storage temperature [°F]: 5...176
- max. Voltage drop switch output DC [V]: 2.5
- Media: Liquid media; Water; Glycol solutions; Cooling lubricants
- Medium temperature [°F]: 32...185
- Measurement error: ± 5
- MTTF: 3318
- Process connection: 3/4" NPT
- Mechanical switching cycles: 10 million
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 15
- Overload-proof: Yes
- Ambient temperature [°F]: 32...140
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4310 (stainless steel / 301); 1.4301 (stainless steel / 304); PBT; brass chemically nickel-plated; PP; PPS; Polyolefin; O-ring: FKM
- Packaging type
Piece
- Product type
Flow monitor
- Type
SBN333
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M12
- Outputs
PNP
- Material
Stainless steel
- Material properties
nickel plated
- Sealant
FKM
- Max. operating pressure
40 bar
- Contact type
1 maker
- Weight
578.250 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320671 ifm Electronic Flow monitor SBN333 SBN333 Operating voltage (range): 10 - 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320671 ifm Electronic Flow monitor SBN333 SBN333 Operating voltage (range): 10 - 30 V DC 1 pc(s)
Description
Ifm SBN333 flow monitor
