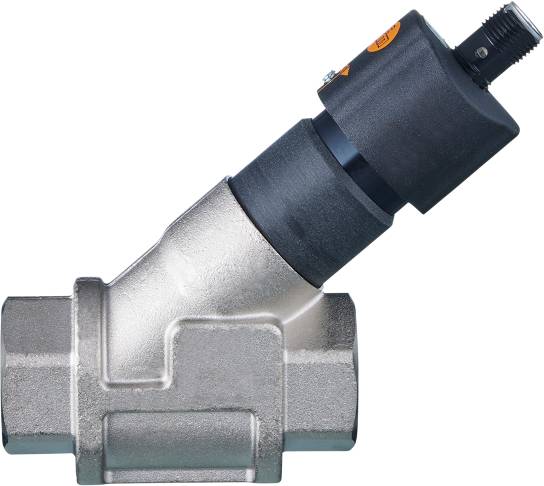

Image similar
ifm Electronic Flow monitor SBY332 SBY332 Operating voltage (range): 10 - 30 V DC 1 pc(s)
Product type
Flow monitor
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Type
SBY332
Operating voltage
10 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm SBY332 flow monitor
- Precise detection of flow in pipes
- Suitable for water, oil and glycol solutions
- Reliable return flow prevention with very fast response time
- Intuitive continuous adjustment of the switching point
- Robust housing with very high pressure resistance
Technical specifications
- Response time [s]: < 0.01
- Number of digital outputs: 1
- Number of inputs and outputs: Number of digital outputs: 1
- Display: Switch status 4 x LED, yellow
- Compressive strength [MPa]: 4
- Reproducibility percent of final value range: 1
- Ambient temperature-1 [°C]: 0...60
- Output function: Closer
- Output signal: Switching signal
- Operating voltage [V]: 10...30 DC; (according to SEL/PEL)
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Compressive strength [bar]: 40
- Setting range [l/min]: 1...15
- Electrical version: PNP
- Total number of outputs: 1
- Weight [g]: 559,600
- Hysteresis [l/min]: 0.2...1
- Short-circuit protection: Yes
- Storage temperature [°C]: -15...80
- max. Voltage drop switch output DC [V]: 2.5
- Media: Liquid media; Water; Glycol solutions; Cooling lubricants
- Medium temperature [°C]: 0...85
- Measurement error: ± 5
- MTTF: 3318
- Process connection: Rp 3/4
- Mechanical switching cycles: 10 million
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 15
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4310 (stainless steel / 301); 1.4301 (stainless steel / 304); PBT; brass chemically nickel-plated; PP; PPS; Polyolefin; O-ring: FKM
- Product type
Flow monitor
- Type
SBY332
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M12
- Response time
0.01 s
- Outputs
PNP
- Material properties
nickel plated
- Sealant
FKM
- Enclosure material
Brass (Ni-plated)
- Media temperature (min.)
0 °C
- Max. media temperature
85 °C
- Max. operating pressure
40 bar
- Contact type
1 maker
IP67
- Weight
0.4420 kg
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320673 ifm Electronic Flow monitor SBY332 SBY332 Operating voltage (range): 10 - 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320673 ifm Electronic Flow monitor SBY332 SBY332 Operating voltage (range): 10 - 30 V DC 1 pc(s)
Description
Ifm SBY332 flow monitor
