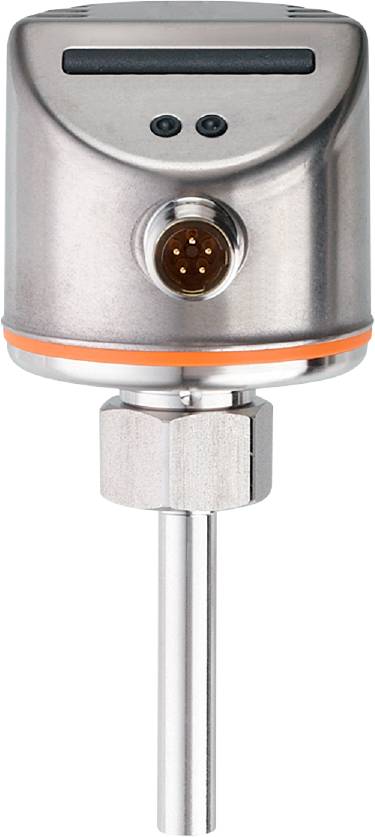

ifm Electronic Flow monitor SI0562 SI0562 Operating voltage (range): 90 - 240 V AC 1 pc(s)
Product type
Flow monitor
Min. operating voltage
90 V AC
Max. operating voltage
240 V AC
Packaging type
Piece
Type
SI0562
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Flow monitor
- Type
SI0562
- Min. operating voltage
90 V AC
- Max. operating voltage
240 V AC
- Operating voltage
90 - 240 V AC
- Features
LED indicator
- Connector
1/2" connector
- Outputs
Relay
- Material
Stainless steel
- Material properties
rust-proof
- Sealant
EPDM
- Enclosure material
Stainless steel
- Media temperature (min.)
-25 °C
- Max. media temperature
80 °C
- Max. operating pressure
300 bar
- Contact type
1 change-over
- Switching voltage (max.)
250 V AC
- Max. switching capacity
750 VA
- Weight
286.150 g
- Min. ambient temperature
-25 °C
- Max. ambient temperature
80 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
