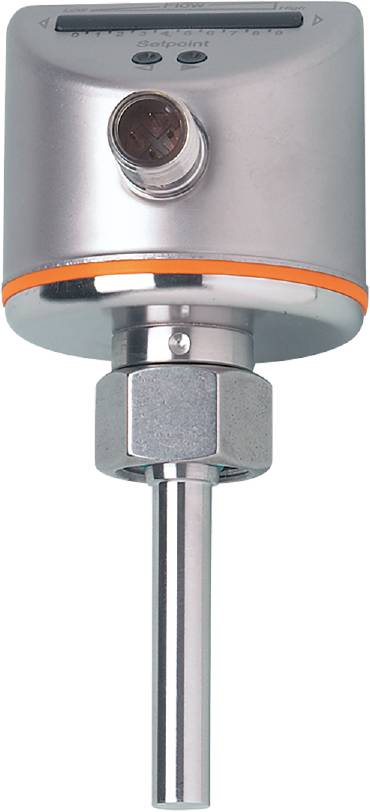

ifm Electronic Flow monitor SI5003 SI5003 Operating voltage (range): 19 - 36 V DC 1 pc(s)
Product type
Flow monitor
Min. operating voltage
19 V DC
Max. operating voltage
36 V DC
Packaging type
Piece
Type
SI5003
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Flow monitor
- Type
SI5003
- Min. operating voltage
19 V DC
- Max. operating voltage
36 V DC
- Operating voltage
19 - 36 V DC
- Connector
M12
- Outputs
NPN
- Material
Stainless steel
- Material properties
rust-proof
- Sealant
FKM
- Enclosure material
Stainless steel
- Nominal diameter
18 mm
- Media temperature (min.)
-25 °C
- Max. media temperature
80 °C
- Max. operating pressure
300 bar
- Weight
249.500 g
- Min. ambient temperature
-25 °C
- Max. ambient temperature
80 °C
- Length
45 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 45 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
