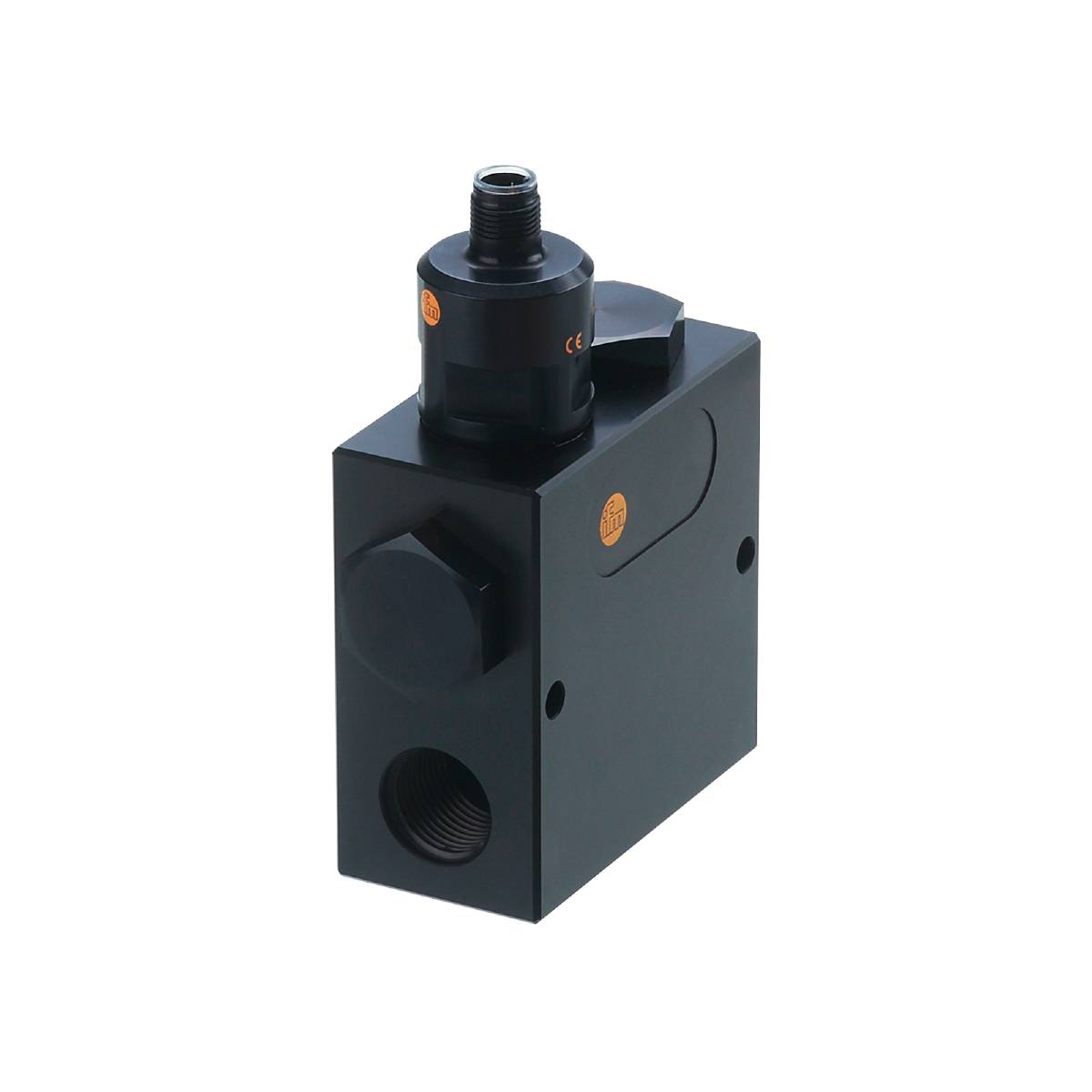

Image similar
ifm Electronic Flow transducer SBU625 SBU625 Reading range: 0.3 - 75 l/min 1 pc(s)
Product type
Flow transducer
Reading range (max.)
75 l/min
Type
SBU625
Operating voltage
24 V DC
Connector
M12
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm SBU625 current transmitter
- Reliable flow monitoring of the internal drill cooling on machine tools
- With integrated backflow prevention
- Precise linearized analogue output
- Robust housing with very high pressure resistance
- Very short response time
Technical specifications
- Analog output voltage [V]: 0.5...10
- Response time [s]: < 0.01
- Compressive strength [MPa]: 20
- Flow Range Flow [l/min]: 75
- Reproducibility percent of final value range: 1
- Ambient temperature-1 [°C]: 0...60
- Application: Tool machines; drill interior cooling
- Output signal: Analogue signal
- Operating voltage [V]: 24 DC (according to SEL/PEL)
- Operating voltage tolerance [%]: -15...10
- Compressive strength [bar]: 200
- Weight [g]: 738,000
- Short-circuit protection: Yes
- Storage temperature [°C]: -15...80
- Media: Liquid media; Water; Glycol solutions; Cooling lubricants
- Medium temperature [°C]: 0...60
- Measuring range [l / min]: 0.3...75
- Measurement error: ± 5
- Min Load resistance [Ω]: 10000
- MTTF: 15.78
- Process connection G 1/2
- Mechanical switching cycles: 10 million
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: 10
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4401 (stainless steel / 316); brass; aluminum anodized; PU; O-ring: FKM
- Product type
Flow transducer
- Type
SBU625
- Operating voltage
24 V DC
- Connector
M12
- Response time
0.01 s
- Outputs
Analogue
- Material
Stainless steel
- Material properties
anodised
- Sealant
FKM
- Media temperature (min.)
0 °C
- Max. media temperature
60 °C
- Max. operating pressure
200 bar
- Reading range (min.)
0.3 l/min
- Reading range (max.)
75 l/min
- Reading range
0.3 - 75 l/min
- Contact type
Analogue
- Weight
738.000 g
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3321693 ifm Electronic Flow transducer SBU625 SBU625 Reading range: 0.3 - 75 l/min 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3321693 ifm Electronic Flow transducer SBU625 SBU625 Reading range: 0.3 - 75 l/min 1 pc(s)
Description
Ifm SBU625 current transmitter
