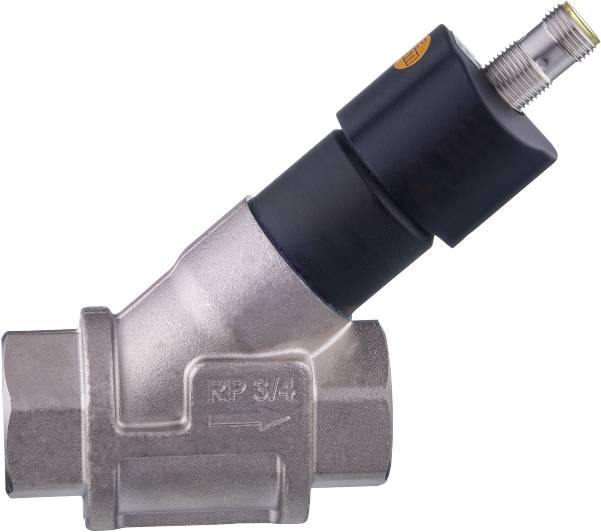

ifm Electronic Flow transducer SBY432 SBY432 Operating voltage (range): 18 - 32 V DC Reading range: 0.3 - 15 l/min 1 pc(
Product type
Flow transducer
Min. operating voltage
18 V DC
Max. operating voltage
32 V DC
Reading range (max.)
15 l/min
Type
SBY432
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm SBY432 flow transmitter
- Precise detection of flow in pipes
- Suitable for water, cooling lubricants, oils and glycol solutions
- Reliable return flow prevention with very fast response time
- Precise linearized analogue output
- Robust housing with very high pressure resistance
Technical specifications
- Analog output current [mA]: 4...20
- Response time [s]: < 0.01
- Compressive strength [MPa]: 4
- Reproducibility percent of final value range: 1
- Ambient temperature-1 [°C]: 0...60
- Output signal: Analogue signal
- Operating voltage [V]: 18...32 DC; (according to SEL/PEL)
- Compressive strength [bar]: 40
- Weight [g]: 564,500
- Short-circuit protection: Yes
- Storage temperature [°C]: -15...80
- Max. Burden [Ω]: 500
- Media: Liquid media; Water; Glycol solutions; Cooling lubricants
- Medium temperature [°C]: -10...100
- Measuring range [l / min]: 0.3...15
- Measurement error: ± 5
- MTTF: 778
- Process connection: Rp 3/4
- Mechanical switching cycles: 10 million
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 35
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4401 (stainless steel / 316); brass; brass chemically nickel-plated; PP; PPS; O-ring FKM
- Product type
Flow transducer
- Type
SBY432
- Min. operating voltage
18 V DC
- Max. operating voltage
32 V DC
- Operating voltage
18 - 32 V DC
- Connector
M12
- Outputs
Analogue
- Material
Stainless steel
- Material properties
nickel plated
- Sealant
FKM
- Media temperature (min.)
-10 °C
- Max. media temperature
100 °C
- Max. operating pressure
40 bar
- Reading range (min.)
0.3 l/min
- Reading range (max.)
15 l/min
- Reading range
0.3 - 15 l/min
- Contact type
Analogue
- Weight
564.500 g
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320694 ifm Electronic Flow transducer SBY432 SBY432 Operating voltage (range): 18 - 32 V DC Reading range: 0.3 - 15 l/min 1 pc(
User & Safety Instructions
User & Safety Instructions 3320694 ifm Electronic Flow transducer SBY432 SBY432 Operating voltage (range): 18 - 32 V DC Reading range: 0.3 - 15 l/min 1 pc(
Description
Ifm SBY432 flow transmitter
