ifm Electronic Light DV2131 DV2131 LED Red , Green, Yellow, Blue, Violet, Cyan, White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

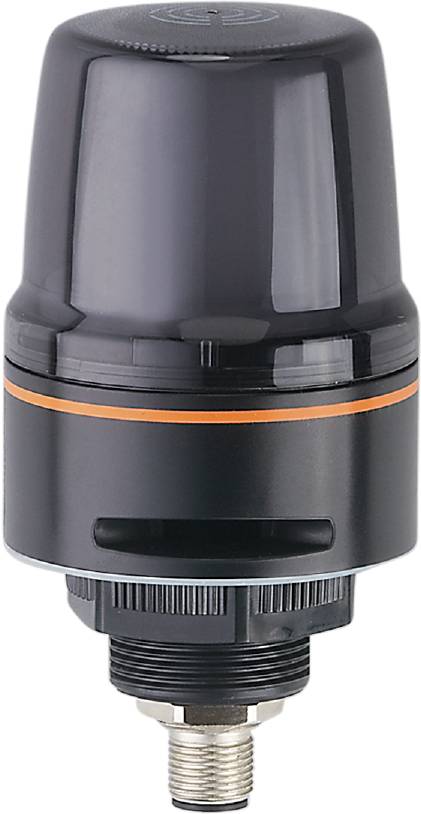

Ifm DV2131 1-segment signal lamp
- Control via IO-Link or by digital inputs
- First-class visibility
- Easy to mount using the M30 fixing nut
- Loud signal horn with adjustable melodies
- High degree of protection even with available signal-horn
Technical specifications
- Dimensions [mm]: Ø 56 / L = 72.5
- Acoustic signal: Buzzer
- Display: LED segment, red / green / yellow / blue / purple / cyan / white
- IO-Link Revision: 1.1
- SDCI standard IEC 61131-9
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: -25...50
- Application: Signaling of machine states
- Required master port class: A
- Operating voltage [V]: 18...30 DC; (according to SEL/PEL; "supply class 2" according to cURus)
- Peak switch-on current [mA]: 400
- Peak switch-on current Duration [ms]: 50
- Weight [g]: 169,500
- Communication interface: IO-Link
- Storage temperature [°C]: -40...75
- Max. Height above NN [m]: 4000
- Max. Sound pressure [dB]: 90
- Max. Permissible relative humidity [%]: 90
- Min Process cycle time [ms]: 2.3
- Rated voltage DC [V]: 24
- Protection system: IP 65
- SIO mode: Yes
- Plug connection: Plug - pin layout: 0063 - plug connection: M12; coding: A.
- Current consumption: < 90
- Pollution level: 2
- Product type
Light
- Operating voltage
24 V
- Max. current consumption
400 mA
- Lighted picture
Multi-colour
- Signal type
Multi-colour
- (Ø)
56 mm
- Height
72.5 mm
- Features
LED
IP65
- Dim
(Ø x H) 56 mm x 72.5 mm
- Colour
Red
Green
Yellow
Blue
Violet
Cyan
White
- Type
DV2131
- Noise emission (max.)
90 dB
- Weight
169.500 g
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Max. temperature
50 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320327 ifm Electronic Light DV2131 DV2131 LED Red , Green, Yellow, Blue, Violet, Cyan, White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320327 ifm Electronic Light DV2131 DV2131 LED Red , Green, Yellow, Blue, Violet, Cyan, White 1 pc(s)
Description
Ifm DV2131 1-segment signal lamp
