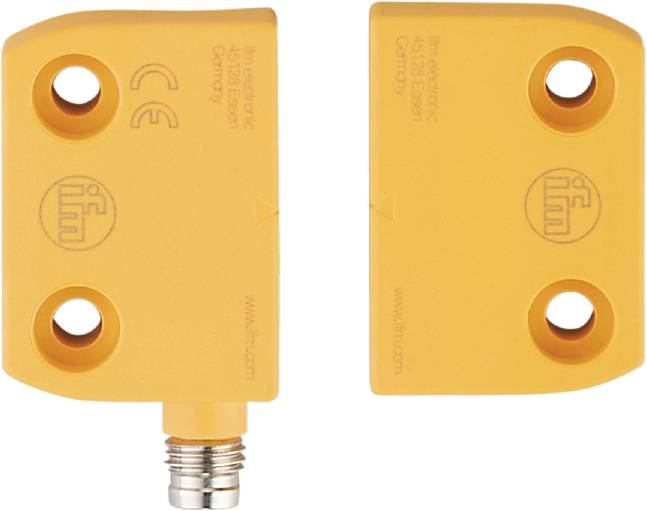

ifm Electronic Magnetic sensor Magnetic MN202S MN202S non-shielded (L x W x H) 36 x 26 x 36 mm
Product type
Magnetic sensor
Max. operating voltage
24 V
Contact type
2 makers
Switching distance (max.)
5 mm
Model
Magnetic
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnetic sensor
- Type
MN202S
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Contact type
2 makers
- Switching distance (max.)
5 mm
- Enclosure material
PA
- Model
Magnetic
- Installation type
non-shielded
- Connector
M8
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP67
IP69K
- Length
36 mm
- Width
26 mm
- Height
36 mm
- Depth
13 mm
- Dim
(L x W x H) 36 x 26 x 36 mm
- Content
1 pc(s)
- Nominal voltage
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317469 ifm Electronic Magnetic sensor Magnetic MN202S MN202S non-shielded (L x W x H) 36 x 26 x 36 mm
User & Safety Instructions
User & Safety Instructions 3317469 ifm Electronic Magnetic sensor Magnetic MN202S MN202S non-shielded (L x W x H) 36 x 26 x 36 mm
