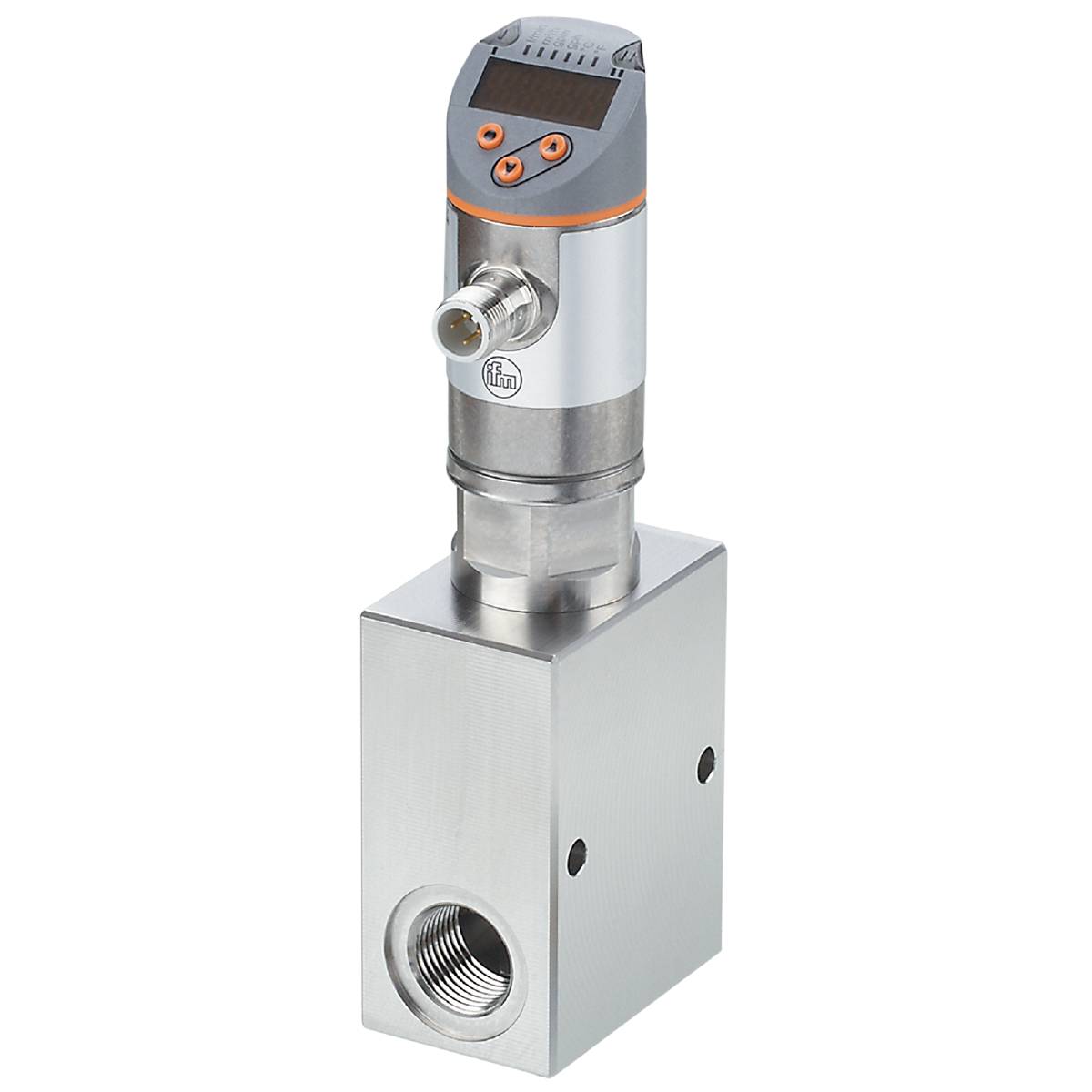

ifm Electronic Mechatronic flow sensor SBZ224 SBZ224 Operating voltage (range): 18 - 30 V DC 1 pc(s)
Product type
Mechatronic flow sensor
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Type
SBZ224
Operating voltage
18 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Mechatronic flow sensor
- Type
SBZ224
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Connector
M12
- Response time
0.01 s
- Outputs
IO link
- Material
Stainless steel
- Material properties
rust-proof
- Sealant
FKM
- Enclosure material
Stainless steel
- Media temperature (min.)
-10 °C
- Max. media temperature
100 °C
- Max. operating pressure
200 bar
- Weight
1734.300 g
- Min. ambient temperature
0 °C
- Max. ambient temperature
60 °C
- Length
175.5 mm
- Width
39 mm
- Height
59 mm
- Dim
(L x W x H) 175.5 x 39 x 59 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
