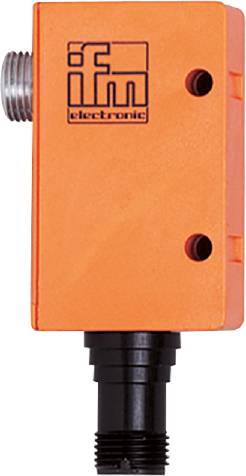

Image similar
ifm Electronic OK5008 FO amplifier OK5008 1 pc(s)
EAN:
Part number:
Item no:
Product type
FO amplifier
Type
OK5008
Min. operating voltage
10 V DC
Max. operating voltage
36 V DC
Operating voltage
10 - 36 V DC
Datasheet (PDF)
Highlights & Details
Ifm OK5008 fiber optic amplifier
- Operating as one way light barrier or light sensor
- Intuitive sensitivity adjustment using potentiometers
- Programmable light / dark switching
- Compact design for use in narrow installation spaces
- Easy to read LED-display for monitoring the switching state
Technical specifications
- Dimensions [mm] 50 x 19 x 35
- Display: Switch status 1 x LED, yellow
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Optics alignment: Lateral look
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Electrical version: PNP
- Housing: Square
- Weight [g]: 66,000
- Short-circuit protection: Yes
- Type of light: Red light
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 529
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Range [m]: 0...0.12; (one-way light barrier)
- Switching frequency DC [Hz]: 120
- Protection system: IP 65
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Power consumption 30; ((24 V)
- Scan width [mm]: 0...40; (reflective light sensor)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 660
- Product type
FO amplifier
- Type
OK5008
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320834 ifm Electronic OK5008 FO amplifier OK5008 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320834 ifm Electronic OK5008 FO amplifier OK5008 1 pc(s)
Description
Ifm OK5008 fiber optic amplifier
