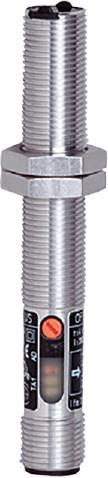

ifm Electronic One-way light barrier OF5022 OF5022 Receiver Switch (light-ON/dark-ON) 1 pc(s)
Product type
One-way light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
36 V DC
Connector
M12
Type
OF5022
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm OF5022 One-way light barrier
- Intuitive sensitivity adjustment using potentiometers
- With function control output for signaling of contamination or adjust
- Robust metal casing for use in harsh industrial environments
- Programmable light / dark switching
- LED-display for monitoring the mode, switching state and function
Technical specifications
- Dimensions [mm] M12 x 1 / L = 74
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Special feature: Function control output
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Electrical version: PNP
- Function control output: Yes
- Housing: Threaded design
- Weight [g]: 40,700
- Thread name M12 x 1
- Short-circuit protection: Yes
- Type of light: Infrared light
- max. Voltage drop function control output [V]: 3.5
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 652
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Range [m]: < 4
- Switching frequency DC [Hz]: 320
- Protection system: IP 65
- Protection class: II
- Transmitter/receiver: Receiver
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 30
- Load capacity function control output [mA]: 10
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 880
- Product type
One-way light barrier
- Type
OF5022
- Model
Receiver
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
Unblinking
- Outputs
PNP
- Switching frequency
320 Hz
- Connector
M12
- Size
M12
- Enclosure material
Brass
- Transmitter type
LED IR
- Wavelength
880 nm
4 m
- Features
LED indicator
IP65
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
85 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 85 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319496 ifm Electronic One-way light barrier OF5022 OF5022 Receiver Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319496 ifm Electronic One-way light barrier OF5022 OF5022 Receiver Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm OF5022 One-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OF5022, please refer to its datasheet under 'downloadable documents'
