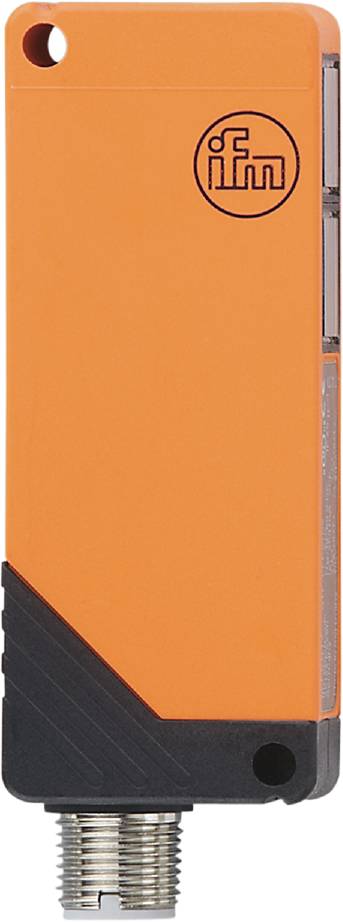

Image similar
ifm Electronic One-way light barrier OT5009 OT5009 Switch (light-ON/dark-ON) 1 pc(s)
Product type
One-way light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
50 V DC
Connector
M12
Type
OT5009
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm OT5009 one-way light barrier
- Compact design for use in narrow installation spaces
- Programmable light / dark switching
- Intuitive sensitivity adjustment using potentiometers
- Very long range
- LED indicator for controlling switch status and operation
Technical specifications
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Optics alignment: Lateral look
- Operating voltage [V]: 10... 50 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Electrical version: PNP
- Housing: Square
- Weight [g]: 161,000
- Short-circuit protection: Yes
- Type of light: Infrared light
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 573
- Optics material: PMMA
- Range/width adjustable: Yes
- Range [m]: < 10
- Switching frequency DC [Hz]: 150
- Protection system: IP 65
- Protection class: II
- Transmitter/receiver: Receiver
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Power consumption 30; ((24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 880
- Product type
One-way light barrier
- Type
OT5009
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
50 V DC
- Operating voltage
10 - 50 V DC
- Outputs
PNP
- Switching frequency
150 Hz
- Connector
M12
- Enclosure material
PMMA
- Light emission
lateral
- Wavelength
880 nm
10 m
IP65
- Min. temperature
-25 °C
- Max. temperature
60 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320291 ifm Electronic One-way light barrier OT5009 OT5009 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320291 ifm Electronic One-way light barrier OT5009 OT5009 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm OT5009 one-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OT5009, please refer to its datasheet under 'downloadable documents'
