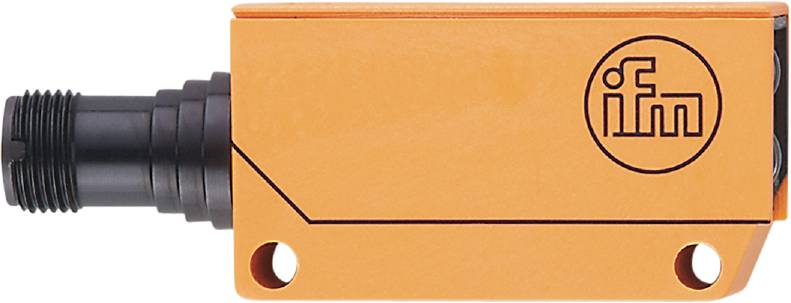

Image similar
ifm Electronic One-way light barrier OU5046 OU5046 Dark-ON 1 pc(s)
Product type
One-way light barrier
Functions
Dark-ON
Max. operating voltage
55 V DC
Connector
M12
Type
OU5046
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm OU5046 One-way Light Barrier
- Very long range
- Compact design for use in narrow installation spaces
- Well visible indication of the switching state
- Large operating voltage range
Technical specifications
- Dimensions [mm] 28 x 16 x 51
- Display: Switch status 1 x LED, yellow
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...80
- Short-circuit protection version: Synchronised
- Output function: Dark switch
- Optics alignment: Lateral look
- Operating voltage [V]: 10... 55 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Electrical version: PNP
- Housing: Square
- Weight [g]: 73,000
- Short-circuit protection: Yes
- Type of light: Infrared light
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 618
- Optics material: Glass
- Range/width adjustable: Yes
- Range [m]: < 6
- Switching frequency DC [Hz]: 140
- IP 67 protection
- Protection class III
- Transmitter/receiver: Receiver
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Power consumption 20; ((24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 880
- Product type
One-way light barrier
- Type
OU5046
- Functions
Dark-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
55 V DC
- Operating voltage
10 - 55 V DC
- Contact type
Blanking
- Outputs
PNP
- Switching frequency
140 Hz
- Connector
M12
- Transmitter type
LED IR
- Light emission
lateral
- Wavelength
880 nm
6 m
- Features
LED indicator
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320126 ifm Electronic One-way light barrier OU5046 OU5046 Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320126 ifm Electronic One-way light barrier OU5046 OU5046 Dark-ON 1 pc(s)
Description
Ifm OU5046 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OU5046, please refer to its datasheet under 'downloadable documents'
