ifm Electronic Pressure sensor 1 pc(s) PG2451 0 psi up to 3625 psi M12 1 breaker, 1 maker, Analogue
Product type
Pressure sensor
Connector
M12
Model
Positive pressure
Pressure reading range (max.)
3625 psi
Max. operating voltage
32 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

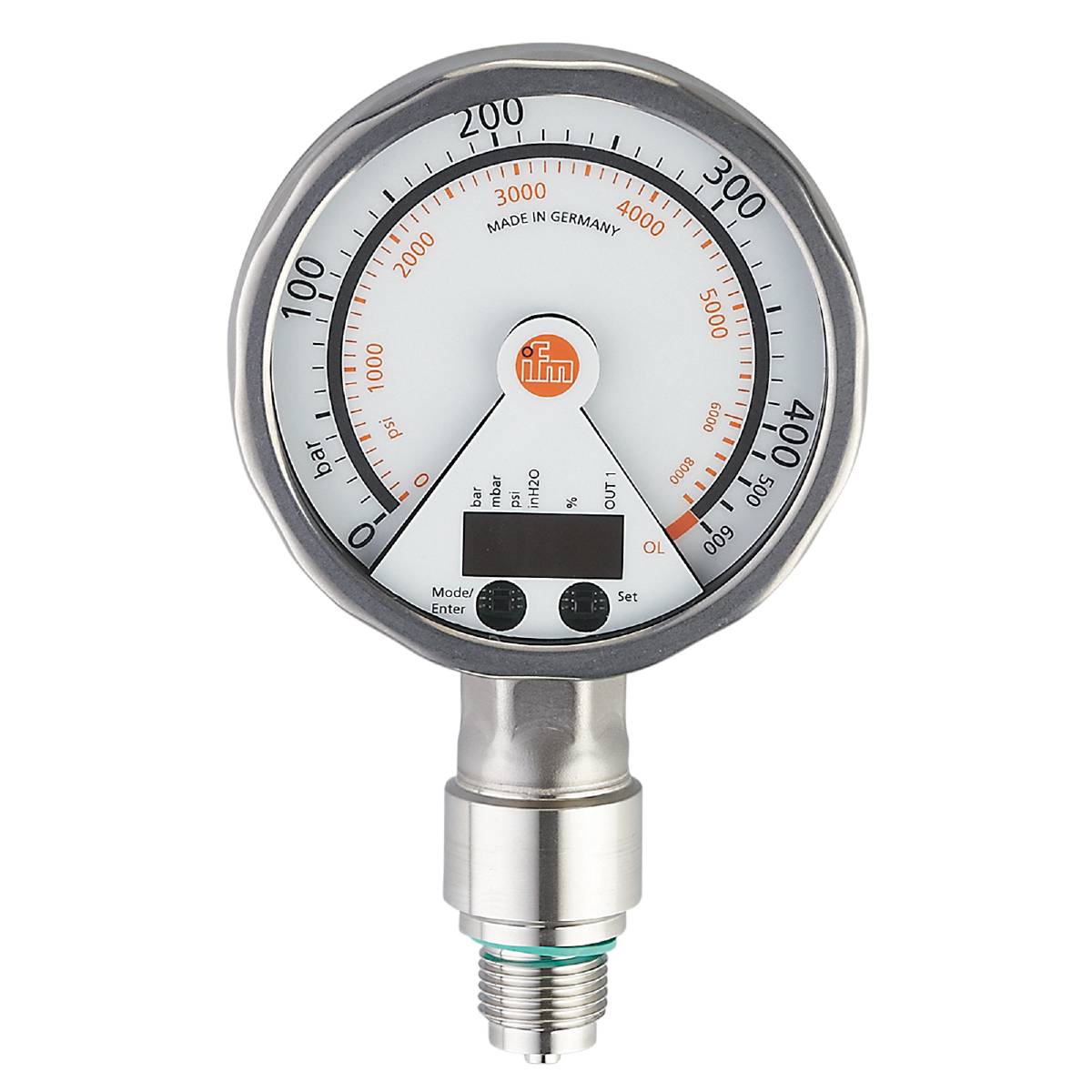

Ifm PG2451 Electronic pressure sensor with analogue display
- Analogue display, pressure switch and transmitter in one device
- Easy to read, even from a great distance
- Rotating display with LED bar graph for displaying the switching points
- Programmable switching output and scalable analogue output
- Robust stainless steel housing for use in harsh industrial environments
Technical specifications
- Analog output current [mA]: 4...20, invertable; (scalable)
- Analog end point [bar]: 50...400
- Analog end point [psi]: 725...5800
- Analog start point [bar]: 0...350
- Analog start point [psi]: 0...5075
- Response time [ms]: < 9
- Number of analog outputs: 1
- Number of digital outputs: 1
- Number of inputs and outputs: Number of digital outputs: 1; number of analog outputs: 1
- Display: Display unit: 2 x LED, green, switching state: LED, yellow; switching points: LED ring, Red; function display: alphanumeric display, red 4-digit; measured values: analogue display, can be rotated 0...350°, Pointer not visible in de-energized state; measured values: alphanumeric display, red 4-digit
- Compressive strength [psi]: 8700
- Characteristic curve deviation: < ± 0.35 (BFSL) / < ± 0.6 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line (minimum value setting))
- Switching point accuracy span: < ± 0.6; (turn down 1:1)
- Ambient temperature-1 [°C]: -20...80
- Repeatability Percentage range: < ± 0.1; (with temperature variations < 10 K; turn down 1:1)
- Application: For industrial use
- Short-circuit protection version: Synchronised
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal, analog signal, (configurable)
- Conditionally usable for: Use in gaseous media when pressing > 25 bar only on request
- Standby delay time [s]: 6
- Special feature: Gold-plated contacts
- Operating voltage [V]: 18... 32 DC
- Attenuation analog output DAA [s]: 0.01...30
- Damping process value DAP [s]: 0.01...30
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Throttle element present: Yes
- Print: Relative pressure
- Compressive strength [bar]: 600
- Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
- Electrical version: PNP/NPN
- Extended display range max. [bar]: 400
- Extended display area max. [psi]: 5800
- Total number of outputs: 2
- Weight [g]: 563,000
- Hysteresis deviation: < ± 0.5; (Turn down 1:1)
- In steps of [bar]: 0.5
- In steps of [psi]: 5
- Short-circuit protection: Yes
- Storage temperature [°C]: -40...100
- Long-term stability: < ± 0.1; (Turn down 1:1; per 6 months)
- Max. Load [Ω]: (Ub - 10 V) / 20 mA
- max. Voltage drop switch output DC [V]: 2
- Media: Liquid and gaseous media
- Medium temperature [°C]: -25...80
- Measuring range [bar]: 0...250
- Measuring range [psi]: 0...3625
- Min Burst pressure [bar]: 1000
- Min Burst pressure [psi]: 14500
- Min Printing cycles: 100 million
- Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
- MTTF: 100
- Process connection: Thread connection G 1/2 External thread
- Return point RP [bar]: 0...399
- RP [psi] return point: 0...5785
- Switching frequency DC [Hz]: 75
- Switching point SP [bar]: 1...400
- Switching point SP [psi]: 15...5800
- PROTECTION CLASS IP 67; IP 69K
- Protection class III
- Scale available: Yes
- Step response time analog output [ms]: 28
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Power consumption < 70; (24 V)
- Temperature coefficient Zero point: < ± 0.3; (0...70 °C)
- Temperature coefficient range: < ± 0.3; (0...70 °C)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Watchdog integrated: Yes
- Materials in contact with the Medium: Al2O3 (ceramic); FKM; 1.4404 (stainless steel / 316L)
- Product type
Pressure sensor
- Type
PG2451
- Connector
M12
- Model
Positive pressure
- Outputs
PNP
NPN
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Pressure reading range (min.)
0 psi
- Pressure reading range (max.)
3625 psi
- Pressure reading range
0 psi up to 3625 psi
- Min. operating voltage
18 V DC
- Max. operating voltage
32 V DC
- Operating voltage
18 - 32 V DC
- Contact type
1 breaker
1 maker
Analogue
IP67/IP69K
- Hose connection
G1/2 AG
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Weight
0.6180 kg
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3321561 ifm Electronic Pressure sensor 1 pc(s) PG2451 0 psi up to 3625 psi M12 1 breaker, 1 maker, Analogue
User & Safety Instructions
User & Safety Instructions 3321561 ifm Electronic Pressure sensor 1 pc(s) PG2451 0 psi up to 3625 psi M12 1 breaker, 1 maker, Analogue
Description
Ifm PG2451 Electronic pressure sensor with analogue display
