ifm Electronic Pressure sensor 1 pc(s) PN4227 0 kPa up to 100 kPa Plug 1 breaker, 1 maker
Product type
Pressure sensor
Connector
Plug
Model
Relative pressure
Pressure reading range (max.)
100 kPa
Max. operating voltage
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

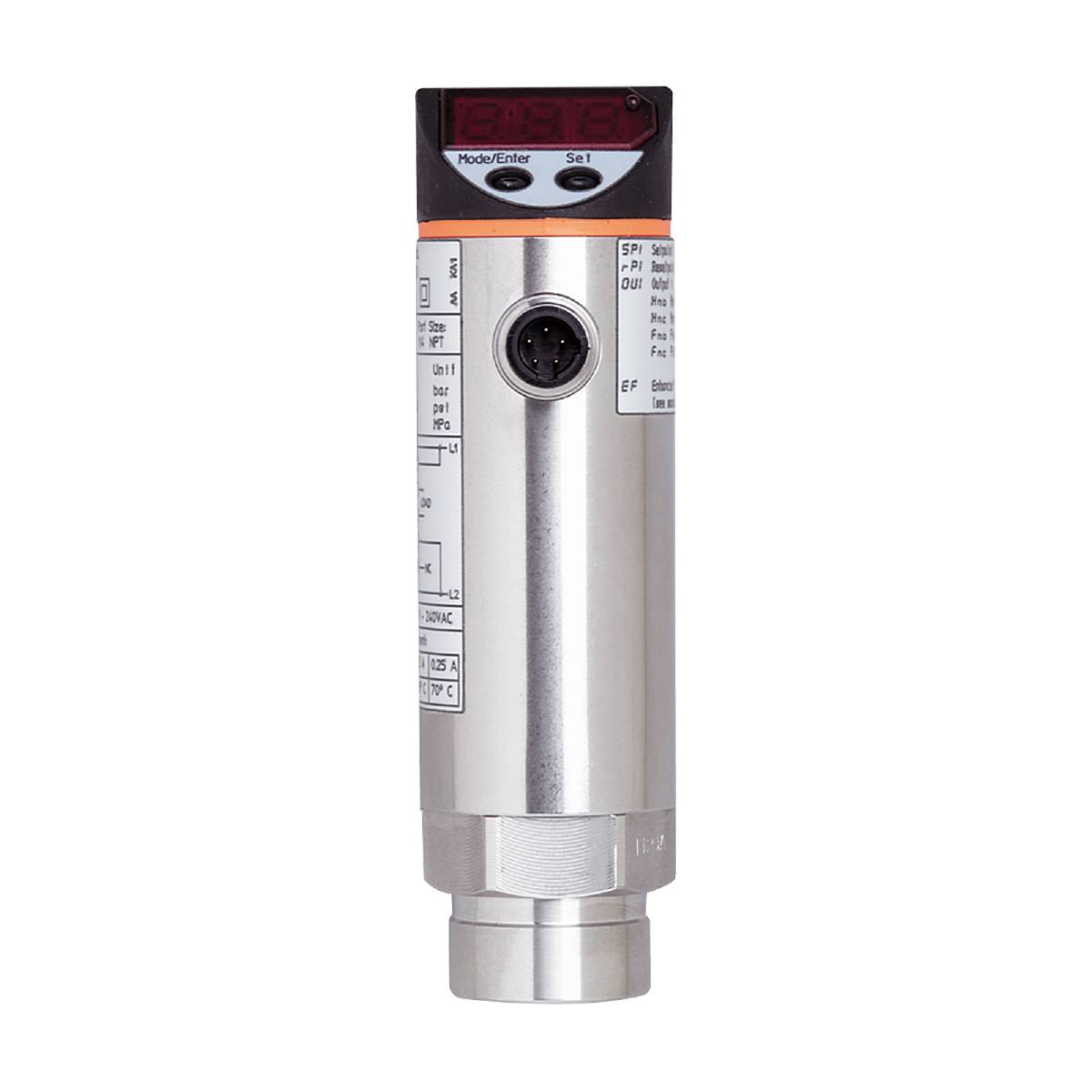

Ifm PN4227 Electronic pressure switch
- Potential-free Triac switch output for currents up to 2.5 A.
- For use in AC voltage networks
- Selectable country-specific pressure units
- Easy-to-read 4-digit LED display
- Long-term stability thanks to high overload resistance
Technical specifications
- Number of digital outputs: 1
- Number of inputs and outputs: Number of digital outputs: 1
- Display: Switching state: LED, red; function display: 7-segment LED display; measured values: 7-segment LED display
- Compressive strength [psi]: 145
- Linearity deviation percent range: < ± 0.5
- Switching point comparison: Programming button
- Switching point accuracy span: < ± 1.0
- Ambient temperature-1 [°C]: -25...80
- Repeatability Percentage range: < ± 0.1; ( < 10 K for temperature fluctuations)
- Application: For industrial use
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal
- Standby delay time [s]: 0.2
- Operating voltage [V]: 90...250 AC
- Operating voltage tolerance [%]: 5...10
- Damping process value DAP [s]: 0...4
- Constant current carrying capacity of switching output AC [mA]: 250; (...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C))
- Throttle element present: No (retrofit)
- Print: Relative pressure
- Compressive strength [kPa]: 1000
- Compressive strength [mbar]: 10000
- Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
- Adjustable delay time dS, dr [s]: 0, 0.2,...10, 11,...50
- Electrical version: Triac
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
- Total number of outputs: 1
- Weight [g]: 356,650
- Hysteresis deviation: < ± 0.1
- In steps of [kPa]: 0.1
- In steps of [mbar]: 1
- In steps of [psi]: 0.1
- Short-circuit-proof: No.
- Storage temperature [°C]: -40...100
- Long-term stability: < ± 0.1; (per year)
- max. Voltage drop switch output AC [V]: 2
- Media: Liquid and gaseous media
- Medium temperature [°C]: -25...80
- Measuring range [bar]: 0...1
- Measuring range: 0...100
- Measuring range [mbar]: 0...1000
- Measuring range [psi]: 0...14.5
- Min Bursting pressure [kPa]: 3000
- Min Burst pressure [mbar]: 30000
- Min Burst pressure [psi]: 430
- Min Printing cycles: 100 million
- Min INSULATION RESISTANCE [MΩ]: 100; (500 V DC)
- MTTF: 224.58
- Nominal voltage AC [V]: < 250
- Parameterization options: Hysteresis/window; NO/NC; pick-up/drop-off delay; attenuation; display value adjustment; Display rotatable / can be switched off; display unit
- Process connection: Threaded connection 1/4" NPT internal thread
- Return point RP [kPa]: 0.5...99.4
- Return point RP [mbar]: 5...994
- RP [psi] return point: 0.1...14.5
- Switching frequency AC [Hz]: < 160
- Switching point SP [kPa]: 1...99.9
- Switching point SP [mbar]: 10...999
- Switching point SP [psi]: 0.1...14.6
- Protection system: IP 65
- Protection class: II
- Plug connection: Pin layout: 0093 - plug connector 1 x 1/2"; code: C
- Current consumption: < 10
- Temperature coefficient Zero point: < ± 0.2; (-25...80 °C)
- Temperature coefficient range: < ± 0.3; (-25...80 °C)
- Overload-proof: No.
- Reverse polarity protected: No.
- Watchdog integrated: Yes
- Materials in contact with the Medium: 1.4305 (stainless steel / 303); ceramics; FKM
- Product type
Pressure sensor
- Type
PN4227
- Connector
Plug
- Model
Relative pressure
- Outputs
Triac
- Accuracy
0.1 %
- Pressure reading range (min.)
0 kPa
- Pressure reading range (max.)
100 kPa
- Pressure reading range
0 kPa up to 100 kPa
- Min. operating voltage
90 V AC
- Max. operating voltage
250 V AC
- Operating voltage
90 - 250 V AC
- Operating current
10 mA
- Contact type
1 breaker
1 maker
- Burst load
3000 kPa
- Hose connection
1/4" NPT IG
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Weight
356.650 g
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
