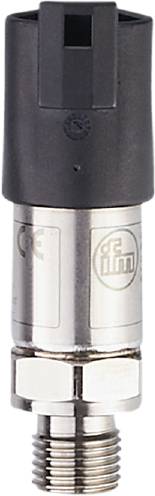

Image similar
ifm Electronic Pressure sensor 1 pc(s) PT5760 0 MPa up to 60 MPa DEUTSCH connector Analogue Single
Packaging type
Single
Product type
Pressure sensor
Connector
DEUTSCH connector
Model
Relative pressure
Pressure reading range (max.)
60 MPa
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Single
- Product type
Pressure sensor
- Type
PT5760
- Connector
DEUTSCH connector
- Model
Relative pressure
- Response time
2 ms
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Pressure reading range (min.)
0 MPa
- Pressure reading range (max.)
60 MPa
- Pressure reading range
0 MPa up to 60 MPa
- Min. operating voltage
8 V DC
- Max. operating voltage
32 V DC
- Operating voltage
8 - 32 V DC
- Contact type
Analogue
- Burst load
2500 bar
- Hose connection
G1/4 AG
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Weight
62.500 g
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
