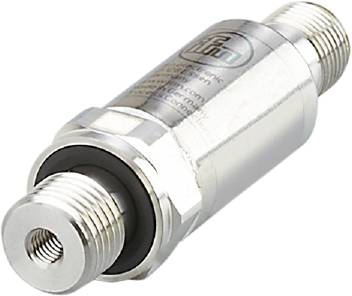

Image similar
ifm Electronic Pressure sensor 1 pc(s) PU560E 0 MPa up to 60 MPa M12 Analogue
Product type
Pressure sensor
Connector
M12
Model
Relative pressure
Pressure reading range (max.)
60 MPa
Max. operating voltage
32 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pressure sensor
- Type
PU560E
- Connector
M12
- Cable length
30 m
- Model
Relative pressure
- Response time
2 ms
- Outputs
Voltage (analogue)
- Output signal (min.)
0.5 V
- Output signal (max.)
4.5 V
- Interfaces
M12 plug
- Accuracy
0.8 %
- Pressure reading range (min.)
0 MPa
- Pressure reading range (max.)
60 MPa
- Pressure reading range
0 MPa up to 60 MPa
- Min. operating voltage
8 V DC
- Max. operating voltage
32 V DC
- Operating voltage
8 - 32 V DC
- Operating current
12 mA
- Contact type
Analogue
- Burst load
2500 bar
- Hose connection
G1/4 AG
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Weight
59.100 g
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
