Image similar

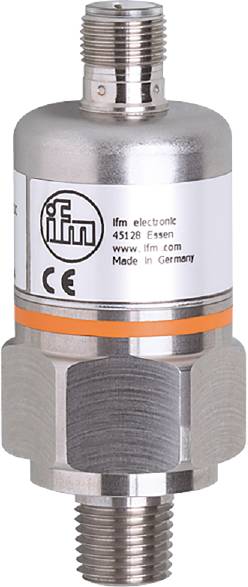

ifm Electronic Pressure sensor 1 pc(s) PX3238 0 psi up to 5 psi M12 Analogue
Product type
Pressure sensor
Connector
M12
Model
Relative pressure
Pressure reading range (max.)
5 psi
Max. operating voltage
32 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Pressure sensor
- Type
PX3238
- Connector
M12
- Model
Relative pressure
- Response time
3 ms
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy
0.25 %
- Pressure reading range (min.)
0 psi
- Pressure reading range (max.)
5 psi
- Pressure reading range
0 psi up to 5 psi
- Min. operating voltage
9.6 V DC
- Max. operating voltage
32 V DC
- Operating voltage
9.6 - 32 V DC
- Contact type
Analogue
- Burst load
450 psi
- Hose connection
1/4" NPT AG
M5 IG
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Weight
213.000 g
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3320812 ifm Electronic Pressure sensor 1 pc(s) PX3238 0 psi up to 5 psi M12 Analogue
User & Safety Instructions
User & Safety Instructions 3320812 ifm Electronic Pressure sensor 1 pc(s) PX3238 0 psi up to 5 psi M12 Analogue
