Name: ifm Electronic PS3417 Level probe PS3417 1 pc(s)
Brand: ifm Electronic
SKU: 3321593

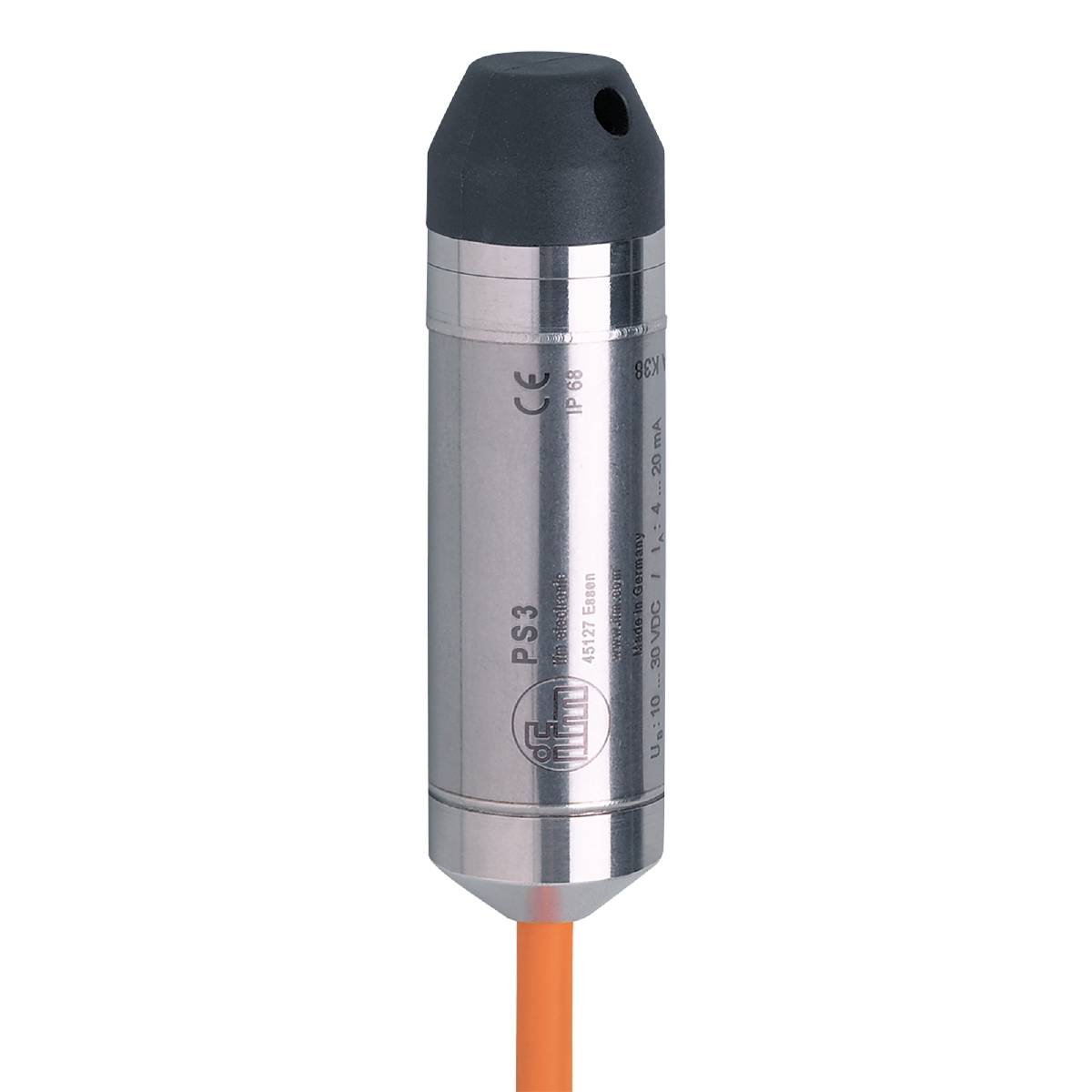

Pressure sensor in cylindrical form with metal housing and black cap, cable connection at the base.

Image similar

Product type

Level probe

Type

PS3417

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm PS3417 Level Sensor

Low-cost and easy level measurement
Pressure compensation via internally ventilated cable
Reduced wiring expenditure when operating as two-wire current loop
High overall accuracy and long-term stability
Robust stainless steel housing with high leak tightness

Technical specifications

Analog output current [mA]: 4...20
Number of analog outputs: 1
Number of inputs and outputs: Number of analog outputs: 1
Compressive strength [psi]: 72.5
Characteristic curve deviation: < 0.5 (BFSL) /1; (incl. linearity, zero point and clamping error (limit point setting))
Linearity deviation percent range: < 0.2 (BFSL)
Level measuring principle: Hydrostatic
Ambient temperature-1 [°C]: -10...50
Repeatability Percentage range: < 0.1; ( < 10 K for temperature fluctuations)
Application: For industrial use
Design: With capillary tube for pressure compensation
Output signal: Analogue signal
Operating voltage [V]: 10... 30 DC
Print: Relative pressure
Compressive strength [bar]: 5
Compressive strength [kPa]: 500
Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
Total number of outputs: 1
Weight [g]: 1284,550
Cable: Cable: 15 m, PUR, Ø 7.5 mm; wire insulation: PVC
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Long-term stability: < 0.2; (per year)
Max. Load Ω: 700; (Ub = 24 V; (Ub - 10 V) / 20 mA)
Media: Liquid media
Medium temperature [°C]: -10...50
Measuring range [bar]: 0...1
Measuring range [inH2O]: 0...401.5
Measuring range: 0...100
Measuring range [mbar]: 0...1000
Measuring range [psi]: 0...14.5
Min Burst pressure [bar]: 6
Min Bursting pressure [kPa]: 600
Min Burst pressure [psi]: 87
MTTF: 403
Protection class:IP 68
Protection class III
Temperature coefficient Zero point: < ± 0.2; (0...50 °C)
Temperature coefficient range: < ± 0.2; (0...50 °C)
Reverse polarity protection: Yes
