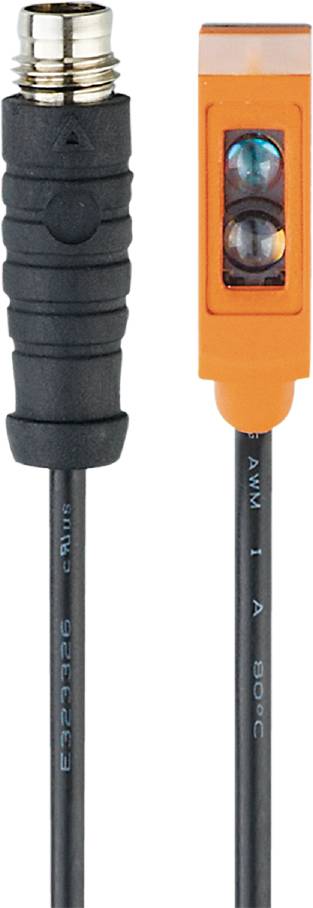

Image similar
ifm Electronic Retroreflective light barrier O8P203 O8P203 Dark-ON 1 pc(s)
Packaging type
Piece
Product type
Retroreflective light barrier
Functions
Dark-ON
Max. operating voltage
30 V DC
Connector
M8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm O8P203 reflective light barrier
- Especially small design for use in narrow installation spaces
- For reliable position recording in feeder and handling technology
- Exact detection of especially small, very flat or strongly reflective components
- Immediate operational readiness thanks to fixed setting
- Very long range
Technical specifications
- Dimensions [mm] 28.1 x 8.1 x 14.4
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light barrier
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Dark switch
- Optics alignment: Lateral look
- Special property: Polfilter
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Electrical version: NPN
- Housing: Square
- Weight [g]: 21,200
- Cable: 0.3 m, PVC, black, Ø 2.9 mm, 3 x 0.08 mm²
- Short-circuit protection: Yes
- Type of light: Red light
- Light spot dimensions apply to: At maximum sensor width
- Max. Light spot diameter [mm]: 120
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 1067
- Optics material: PMMA
- Polarising filter: Yes
- Test mark (special cases): CCC
- Range/key width adjustable: No.
- Range on triple mirror [m]: 0.02...1.8; (triple mirror Ø 30 E20004)
- Switching frequency DC [Hz]: 1000
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0059 - plug connection: 1 x M8; code: A.
- Power consumption 20; ((24 V)
- Reverse polarity protection: Yes
- Wavelength [nm]: 633
- Packaging type
Piece
- Product type
Retroreflective light barrier
- Type
O8P203
- Functions
Dark-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Blanking
- Outputs
NPN
- Switching frequency
1000 Hz
- Connector
M8
- Cable length
0.3 m
- Transmitter type
LED red
- Light emission
lateral
- Wavelength
633 nm
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318973 ifm Electronic Retroreflective light barrier O8P203 O8P203 Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318973 ifm Electronic Retroreflective light barrier O8P203 O8P203 Dark-ON 1 pc(s)
Description
Ifm O8P203 reflective light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this O8P203, please refer to its datasheet under 'downloadable documents'
