Name: ifm Electronic Retroreflective light barrier O8P204 O8P204 Dark-ON 1 pc(s)
Brand: ifm Electronic
SKU: 3319007

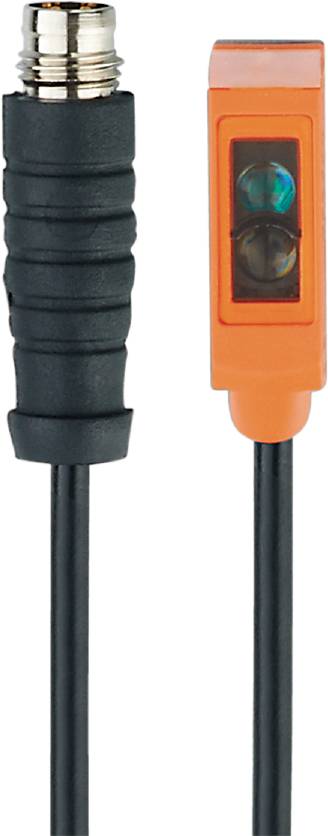

A black and an orange cable plug positioned side by side against a white background.

Image similar

Product type

Retroreflective light barrier

Functions

Dark-ON

Max. operating voltage

30 V DC

Connector

Type

O8P204

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm O8P204 reflex light barrier

Especially small design for use in narrow installation spaces
For reliable position recording in feeder and handling technology
Exact detection of especially small, very flat or strongly reflective components
Very long range
Comfortable adjustment of the range using IO-Link

Technical specifications

Dimensions [mm] 28.1 x 8.1 x 14.4
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
Functional principle opto: Reflection light barrier
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
Required master port class: A
Special property: Polfilter
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Square
Weight [g]: 21,100
IO-Link functions (acyclic): Application-specific marking; operating hours counter; switching cycle counter
Cable: 0.3 m, PVC, black, Ø 2.9 mm, 3 x 0.08 mm²
Communication interface: IO-Link
Short-circuit protection: Yes
Type of light: Red light
Light spot dimensions apply to: At maximum sensor width
Max. Light spot diameter [mm]: 120
max. Voltage drop switch output DC [V]: 2.5
Min Process cycle time [ms]: 2.5
MTTF: 1067
Optics material: PMMA
Polarising filter: Yes
Profile: Smart sensor: Device identification; device diagnosis; teach channel; switching channel
Test mark (special cases): CCC
Range/width adjustable: Yes
Range on triple mirror [m]: 0.02...1.8; (triple mirror Ø 30 E20004)
Switching frequency DC [Hz]: 1000
Protection class IP 65; IP 67
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0060 - plug connection: 1 x M8; code: A.
Power consumption 20; ((24 V)
Reverse polarity protection: Yes
Wavelength [nm]: 633
