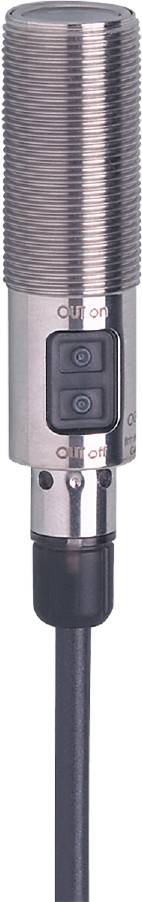

ifm Electronic Retroreflective light barrier OGP502 OGP502 Polarisation filter 1 pc(s)
Product type
Retroreflective light barrier
Functions
Polarisation filter
Max. operating voltage
36 V DC
Connector
Cable, open end
Type
OGP502
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm OGP502 Reflective photoelectric sensor
- Very good value for money
- Very long range
- Robust stainless steel design for use in harsh industrial environments
- Extensive range of system components for easy and secure mounting
Technical specifications
- Dimensions [mm]: M18 x 1 / L = 80.4
- Display: Switch status 1 x LED, yellow
- Functional principle opto: Reflection light barrier
- Ambient temperature-1 [°C]: -25...80
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Special property: Polfilter
- Operating voltage [V]: 10... 36 DC
- Constant current carrying capacity of the switching output DC [mA]: 150; (200 (...60 °C)
- Electrical version: PNP
- Housing: Threaded design
- Weight [g]: 125,300
- Thread name M18 x 1
- Cable: 2 m, PUR; 3 x 0.34 mm²
- Short-circuit protection: Yes
- Type of light: Red light
- Light spot dimensions apply to: At maximum range
- Max. Light spot diameter [mm]: 200
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 431
- Optics material: PMMA
- Polarising filter: Yes
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Range on triple mirror [m]: 0.03...5; (triple mirror Ø 80 E20005)
- Switching frequency DC [Hz]: 2000
- IP 67 protection
- Protection class: II
- Current consumption: 20
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 624
- Product type
Retroreflective light barrier
- Type
OGP502
- Functions
Polarisation filter
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 PNP
- Outputs
PNP
- Switching frequency
2000 Hz
- Connector
Cable, open end
- Cable length
2 m
- Size
M18 x 1
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Transmitter type
LED red
- Wavelength
624 nm
5 m
- Features
LED indicator
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
80.4 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 80.4 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319662 ifm Electronic Retroreflective light barrier OGP502 OGP502 Polarisation filter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319662 ifm Electronic Retroreflective light barrier OGP502 OGP502 Polarisation filter 1 pc(s)
Description
Ifm OGP502 Reflective photoelectric sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this OGP502, please refer to its datasheet under 'downloadable documents'
