Image similar

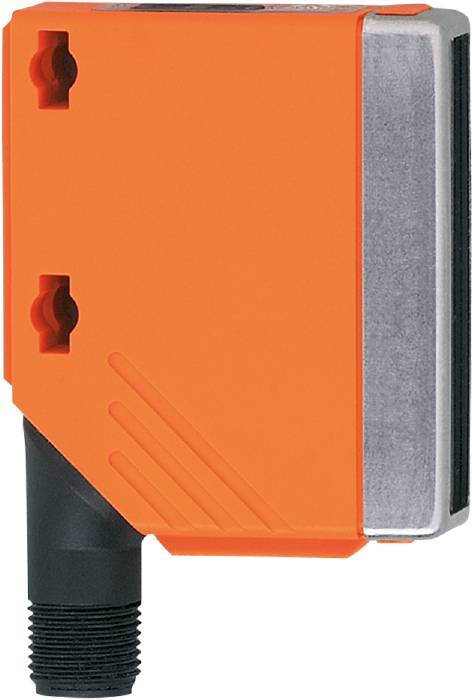

ifm Electronic Retroreflective photo sensor O5H500 O5H500 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
36 V DC
Connector
M12
Type
O5H500
Datasheet (PDF)
Highlights & Details
Ifm O5H500 reflective light sensor
- Very high sensor width
- Precise background suppression
- Sensitivity can be set using the teach buttons
- Robust housing for use in rough industrial environment
- Programmable light / dark switching
Technical specifications
- Dimensions [mm] 56 x 18.2 x 46.8
- Display: Switch status 1 x LED, yellow
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Optics alignment: Lateral look
- Special feature: Background suppression
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Electrical version: PNP
- Electronic lock: Yes
- Housing: Square
- Weight [g]: 67,500
- Background suppression available: Yes
- Short-circuit protection: Yes
- Type of light: Red light
- Light spot dimensions apply to: Scanning width
- Max. Light spot diameter [mm]: 50
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 360
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Switching frequency DC [Hz]: 1000
- IP 67 protection
- Protection class: II
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: 25
- Scan width [mm]: 50...1800; (white paper 200 x 200 90% remission)
- Touch width object gray (18% response) [mm]: 50...900
- Touch width object black (6% response) [mm]: 50...600
- Touch width object white (90% response) [mm]: 50...1800
- Teach function: Yes
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 624
- Product type
Retroreflective photo sensor
- Type
O5H500
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M12
- Enclosure material
PA
- Light emission
lateral
- Wavelength
624 nm
1800 mm
- Features
Incl. background suppression
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
47 mm
- Width
18.2 mm
- Height
56 mm
- Depth
46.8 mm
- Dim
(L x W x H) 47 x 18.2 x 56 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320245 ifm Electronic Retroreflective photo sensor O5H500 O5H500 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320245 ifm Electronic Retroreflective photo sensor O5H500 O5H500 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm O5H500 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this O5H500, please refer to its datasheet under 'downloadable documents'
