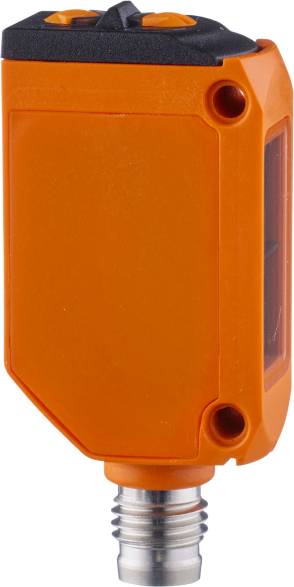

ifm Electronic Retroreflective photo sensor O6H202 O6H202 Switch (light-ON/dark-ON) 1 pc(s)
Packaging type
Piece
Product type
Retroreflective photo sensor
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm O6H202 reflex light sensor
- Especially compact design for use in narrow installation spaces
- Intuitive sensitivity adjustment using potentiometers
- Convenient selection of bright or dark switching via rotary switch
- Background suppression especially with noise immunity, even in case of strongly reflecting backgrounds
- Very good value for money
Technical specifications
- Dimensions [mm] 46 x 13 x 21
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -25...60
- Tightening torque [Nm]: 0.5
- Short-circuit protection version: Synchronised
- Output function: Light-/dark switching (switchable)
- Optics alignment: Lateral look
- Special feature: Background suppression
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Electrical version: PNP
- Housing: Square
- Weight [g]: 18,300
- Background suppression available: Yes
- Short-circuit protection: Yes
- Type of light: Red light
- Light spot dimensions apply to: At maximum sensor width
- Max. Light spot diameter [mm]: 8
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 683
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Switching frequency DC [Hz]: 1000
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0059 - Plug connection: 1 x M8; Coding: A; lock: Brass, coated; Seal: EPDM
- Power consumption 22; ((24 V)
- Scan width [mm]: 2...200; (white paper 200 x 200 )
- Touch width object gray (18% response) [mm]: 4...200
- Touch width object black (6% response) [mm]: 8...200
- Touch width object white (90% response) [mm]: 2...200
- Reverse polarity protection: Yes
- Wavelength [nm]: 633
- Material seal: EPDM
- Packaging type
Piece
- Product type
Retroreflective photo sensor
- Type
O6H202
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M8
- Enclosure material
Acrylonitrile butadiene styrene
- Light emission
lateral
- Wavelength
633 nm
200 mm
- Features
Incl. background suppression
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
21 mm
- Width
46 mm
- Height
13 mm
- Depth
21 mm
- Dim
(L x W x H) 21 x 46 x 13 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319138 ifm Electronic Retroreflective photo sensor O6H202 O6H202 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319138 ifm Electronic Retroreflective photo sensor O6H202 O6H202 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm O6H202 reflex light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this O6H202, please refer to its datasheet under 'downloadable documents'
