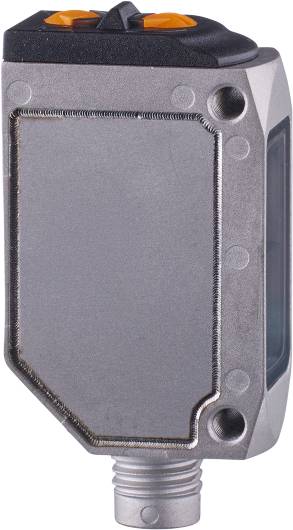

Image similar
ifm Electronic Retroreflective photo sensor O6H303 O6H303 Switch (light-ON/dark-ON) 1 pc(s)
Product type
Retroreflective photo sensor
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8
Type
O6H303
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Retroreflective photo sensor
- Type
O6H303
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M8
- Enclosure material
Stainless steel V4A
- Transmitter type
LED red
- Light emission
lateral
- Wavelength
633 nm
200 mm
- Features
Incl. background suppression
IP65
IP67
IP68
IP69K
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
21 mm
- Width
21 mm
- Height
41.3 mm
- Depth
13 mm
- Dim
(L x W x H) 21 x 21 x 41.3 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319820 ifm Electronic Retroreflective photo sensor O6H303 O6H303 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319820 ifm Electronic Retroreflective photo sensor O6H303 O6H303 Switch (light-ON/dark-ON) 1 pc(s)
Description
Hints
For more information on this O6H303, please refer to its datasheet under 'downloadable documents'
