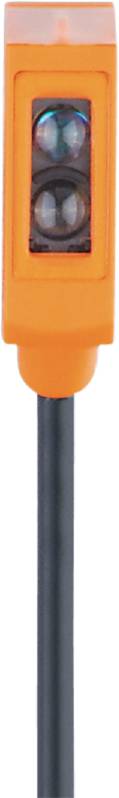

ifm Electronic Retroreflective photo sensor O8T201 O8T201 Light-ON 1 pc(s)
Product type
Retroreflective photo sensor
Functions
Light-ON
Max. operating voltage
30 V DC
Connector
Cable, open end
Type
O8T201
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm O8T201 reflective light sensor
- Especially small design for use in narrow installation spaces
- For reliable position recording in feeder and handling technology
- Exact detection of especially small, very flat or strongly reflective components
- Immediate operational readiness thanks to fixed setting
- Very high sensor width
Technical specifications
- Dimensions [mm] 28.1 x 8.1 x 14.4
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Output function: Light switching
- Optics alignment: Lateral look
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Electrical version: NPN
- Housing: Square
- Weight [g]: 40,000
- Cable: 2 m, PVC, black, Ø 2.9 mm, 3 x 0.08 mm²
- Short-circuit protection: Yes
- Type of light: Red light
- Light spot dimensions apply to: At maximum sensor width
- Max. Light spot diameter [mm]: 18
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 1067
- Optics material: PMMA
- Test mark (special cases): CCC
- Switching frequency DC [Hz]: 1000
- Protection class IP 65; IP 67
- Protection class III
- Power consumption 20; ((24 V)
- Scan width [mm]: 0...180; (white paper 200 x 200 )
- Reverse polarity protection: Yes
- Wavelength [nm]: 633
- Product type
Retroreflective photo sensor
- Type
O8T201
- Functions
Light-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Unblinking
- Outputs
NPN
- Switching frequency
1000 Hz
- Connector
Cable, open end
- Cable length
2 m
- Transmitter type
LED red
- Light emission
lateral
- Wavelength
633 nm
180 mm
- Features
LED indicator
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318932 ifm Electronic Retroreflective photo sensor O8T201 O8T201 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318932 ifm Electronic Retroreflective photo sensor O8T201 O8T201 Light-ON 1 pc(s)
Description
Ifm O8T201 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this O8T201, please refer to its datasheet under 'downloadable documents'
