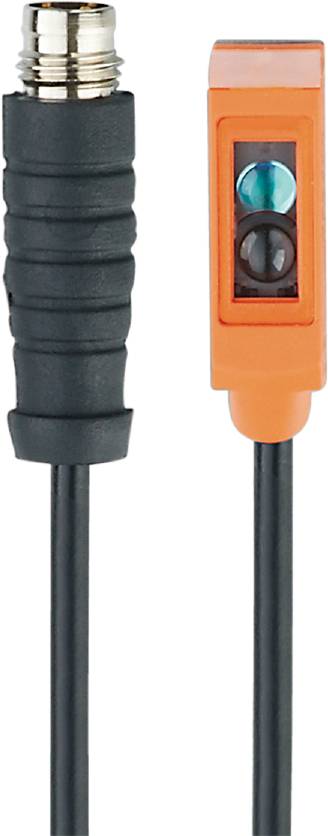

Name: ifm Electronic Retroreflective photo sensor O8T202 O8T202 Light-ON 1 pc(s)
Brand: ifm Electronic
SKU: 3318941

Image similar

Product type

Retroreflective photo sensor

Functions

Light-ON

Max. operating voltage

30 V DC

Connector

Type

O8T202

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Highlights & Details

Ifm O8T202 reflex light sensor

Especially small design for use in narrow installation spaces
For reliable position recording in feeder and handling technology
Exact detection of especially small, very flat or strongly reflective components
Very long range
Comfortable adjustment of the range using IO-Link

Dimensions [mm] 28.1 x 8.1 x 14.4
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
Functional principle opto: Reflection light sensor
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...60
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
Required master port class: A
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Square
Weight [g]: 21,200
IO-Link functions (acyclic): Application-specific marking; operating hours counter; switching cycle counter
Cable: 0.3 m, PVC, black, Ø 2.9 mm, 3 x 0.08 mm²
Communication interface: IO-Link
Short-circuit protection: Yes
Type of light: Red light
Light spot dimensions apply to: At maximum sensor width
Max. Light spot diameter [mm]: 18
max. Voltage drop switch output DC [V]: 2.5
Min Process cycle time [ms]: 2.5
MTTF: 1067
Optics material: PMMA
Profile: Smart sensor: Device identification; device diagnosis; teach channel; switching channel
Test mark (special cases): CCC
Switching frequency DC [Hz]: 1000
Protection class IP 65; IP 67
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0059 - plug connection: 1 x M8; code: A.
Power consumption 20; ((24 V)
Scan width [mm]: 0...180; (white paper 200 x 200 )
Reverse polarity protection: Yes
Wavelength [nm]: 633
