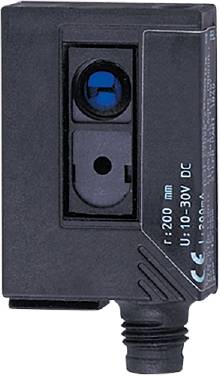

ifm Electronic Retroreflective photo sensor OJ5052 OJ5052 Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Background suppression
Max. operating voltage
30 V DC
Connector
M8
Type
OJ5052
Datasheet (PDF)
Highlights & Details
Ifm OJ5052 reflective light switches
- Reliable detection of very small objects
- Particularly compact design for use in robotics, assembly and handling technology
- Precise background suppression
- Simple alignment by visible laser light spot
- Intuitive adjustment of sensitivity and output function
Technical specifications
- Dimensions [mm] 35 x 24 x 11
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -10...60
- Short-circuit protection version: Synchronised
- Output function: Light / dark switching (programmable)
- Optics alignment: Frontal look
- Special feature: Background suppression
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Diameter of the smallest detectable object [mm]: 2
- Electrical version: PNP
- Electronic lock: Yes
- Housing: Square
- Weight [g]: 28,300
- Background suppression available: Yes
- Short-circuit protection: Yes
- Laser protection class 1
- Type of light: Red light
- Max. Light spot width [mm]: 2
- Max. Light spot height [mm]: 1
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 501
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Switching frequency DC [Hz]: 1000
- IP 67 protection
- Protection class III
- Plug connection: Pin layout: 0060 - plug connection: 1 x M8; code: A.
- Current consumption: 13
- Scan width [mm]: 15...200; (white paper 200 x 200 90% remission)
- Type. Life span [h]: 50000
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 650
- Product type
Retroreflective photo sensor
- Type
OJ5052
- Functions
Background suppression
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M8
- Transmitter type
LED red
- Laser class
1
- Wavelength
650 nm
200 mm
- Features
LED indicator
IP67
- Min. temperature
-10 °C
- Max. temperature
60 °C
- Length
35 mm
- Width
24 mm
- Height
11 mm
- Dim
(L x W x H) 35 x 24 x 11 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Smallest detectable object size (diameter)
2 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320312 ifm Electronic Retroreflective photo sensor OJ5052 OJ5052 Background suppression 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320312 ifm Electronic Retroreflective photo sensor OJ5052 OJ5052 Background suppression 1 pc(s)
Description
Ifm OJ5052 reflective light switches
This text is machine translated.
This text is machine translated.
Hints
For more information on this OJ5052, please refer to its datasheet under 'downloadable documents'
