Image similar

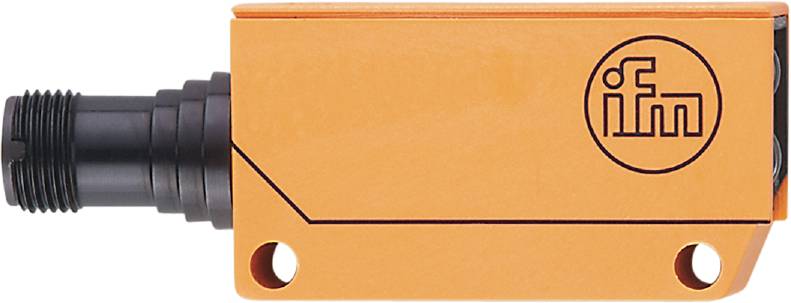

ifm Electronic Retroreflective photo sensor OU5034 OU5034 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Light-ON
Max. operating voltage
55 V DC
Connector
M12
Type
OU5034
Datasheet (PDF)
Technical specifications
- Product type
Retroreflective photo sensor
- Type
OU5034
- Functions
Light-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
55 V DC
- Operating voltage
10 - 55 V DC
- Contact type
Unblinking
- Outputs
PNP
- Switching frequency
160 Hz
- Connector
M12
- Transmitter type
LED IR
- Light emission
lateral
- Wavelength
880 nm
200 mm
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Width
16 mm
- Height
28 mm
- Depth
51 mm
- Dim
(W x H x D) 16 x 28 x 51 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320531 ifm Electronic Retroreflective photo sensor OU5034 OU5034 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320531 ifm Electronic Retroreflective photo sensor OU5034 OU5034 Light-ON 1 pc(s)
Description
Hints
For more information on this OU5034, please refer to its datasheet under 'downloadable documents'
