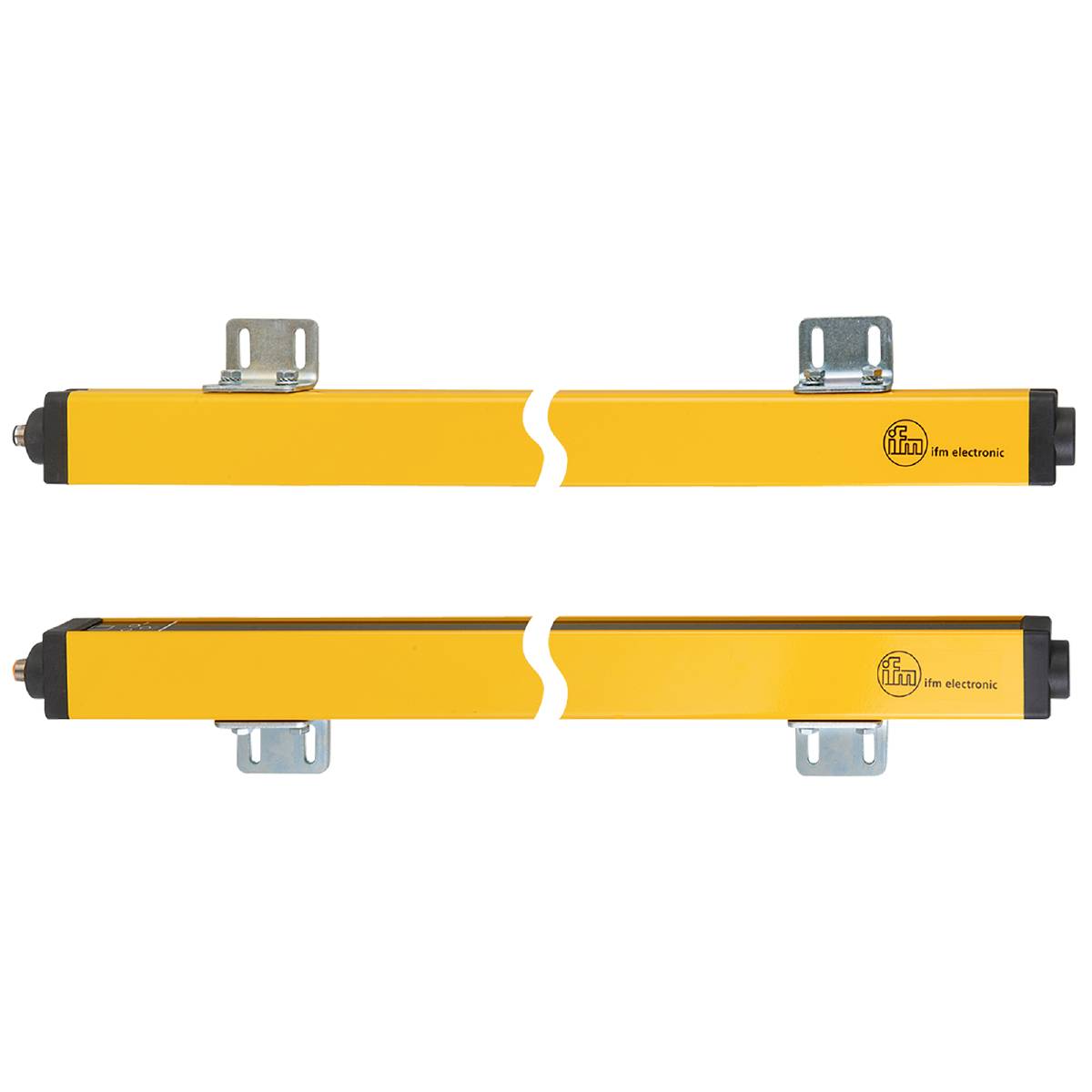

ifm Electronic Safety light barrier OY826S Range (max.) 18 m Protective field height 760 mm 24 V DC
Product type
Safety light barrier
Length
861 mm
Height
45 mm
Type
OY826S
Range of uses
Hand protection
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Safety light barrier
- Type
OY826S
- Range of uses
Hand protection
- Features
LED indicator
- Operating voltage
24 V DC
- Max. current consumption
125 mA
- Response time
9.5 ms
- Contact type
1 PNP
- Smallest detectable object size (diameter)
40 mm
- Connector
M12
- Cable length
100 m
- Transmitter type
LED IR
- Wavelength
950 nm
- Range (min.)
0 m
- Range (max.)
18 m
- Outputs
PNP
- Output current
500 mA
- Safety rating
4
- Protective field height
760 mm
- Total height
45 mm
- Content
1 pc(s)
IP65
- Length
861 mm
- Width
35 mm
- Height
45 mm
- Dim
(L x W x H) 861 x 35 x 45 mm
- Min. temperature
0 °C
- Max. temperature
55 °C
- UKCA
yes
