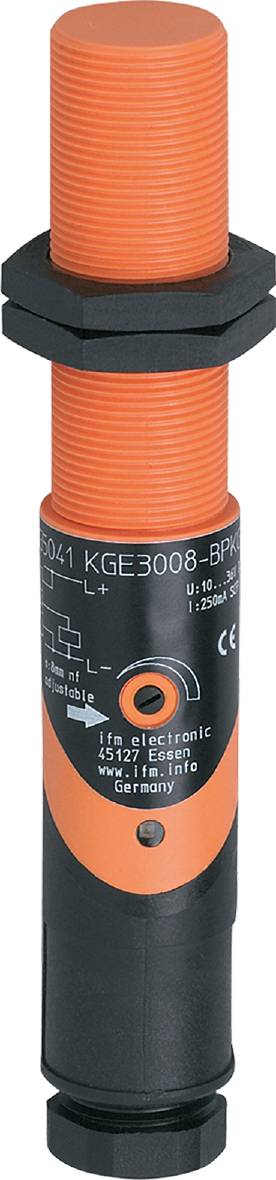

Image similar
ifm Electronic Sensor Capacitive KG0008 KG0008 M18 x 1 non-shielded Two-wire
Product type
Sensor
Max. operating voltage
250 V DC
250 V AC
Contact type
1 breaker
1 maker
Switching distance (max.)
8 mm
Outputs
Two-wire
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm KG0008 capacitive sensor
- With combined AC/DC output stage
- Two-wire technology
- Simply setting the switching distance using potentiometers
- Output function NO / NC programmable
- With connection space rotating by 90°
Technical specifications
- Dimensions [mm]: M18 x 1 / L = 110
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...6.5
- Level measuring principle: Capacitive
- Ambient temperature-1 [°C]: -25...80
- Output function: NO / NC; (selectable)
- OPERATING VOLTAGE [V]: 20...250 AC/DC
- Continuous current carrying capacity of switching output AC [mA]: 150; (350 (...50 °C)
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Built: Not flush-mounted
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
- Housing: Threaded design
- Weight [g]: 82,000
- Thread name M18 x 1
- Hysteresis: 1...15
- Connection/terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 4.5...10 mm; cable gland: M16 X 1.5
- Correction factor (Glass): 0.4
- Correction factor (ceramic): 0.2
- Correction factor (PVC): 0.2
- Correction factor (water): 1
- Short-circuit-proof: No.
- Short-term current carrying capacity of the switching output [mA]: 2100; (20 ms / 0.5 Hz)
- Max. RESIDUAL CURRENT [MA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
- max. Voltage drop switch output AC [V]: 6
- max. Voltage drop switch output DC [V]: 6
- Minimum load current [mA]: 4
- MTTF: 323
- Real switching distance Sr [mm]: 8 ± 10 %
- Switching distance [mm]: 8
- Switching frequency AC [Hz]: 25
- Switching frequency DC [Hz]: 50
- Switch point drift: -15...15
- Protection system: IP 65
- Protection class: II
- Overload-proof: No.
- Reverse polarity protection: No.
- Product type
Sensor
- Type
KG0008
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
8 mm
- Outputs
Two-wire
- Model
Capacitive
- Installation type
non-shielded
- Size
M18 x 1
- Connector
Clip
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
110 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320177 ifm Electronic Sensor Capacitive KG0008 KG0008 M18 x 1 non-shielded Two-wire
User & Safety Instructions
User & Safety Instructions 3320177 ifm Electronic Sensor Capacitive KG0008 KG0008 M18 x 1 non-shielded Two-wire
Description
Ifm KG0008 capacitive sensor
This text is machine translated.
This text is machine translated.
