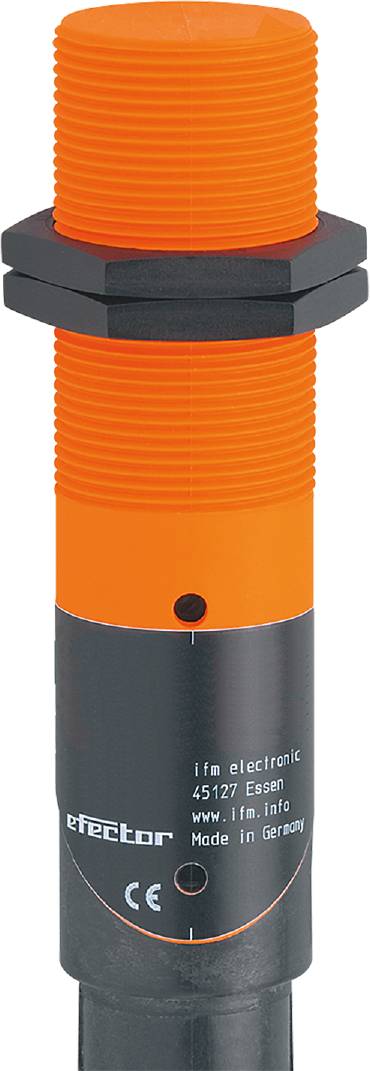

Image similar
ifm Electronic Sensor Capacitive KI0024 KI0024 M30 non-shielded Two-wire (Ø x H) 30 mm x 125 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
250 V DC
250 V AC
Contact type
1 breaker
1 maker
Switching distance (max.)
15 mm
Outputs
Two-wire
Datasheet (PDF)
Highlights & Details
Ifm KI0024 capacitive sensor
- Simply setting the switching distance using potentiometers
- With combined AC/DC output stage
- Two-wire technology
- High noise immunity
- Output function NO / NC programmable
Technical specifications
- Dimensions [mm] M30 x 1.5 / L = 125
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...12.1
- Ambient temperature-1 [°C]: -25...70
- Output function: NO / NC; (selectable)
- OPERATING VOLTAGE [V]: 20...250 AC/DC
- Continuous current carrying capacity of switching output AC [mA]: 200; (for UL application: 250 / 100 DC)
- Continuous current carrying capacity of the switching output DC [mA]: 200; (for UL application: 250 AC / 100 DC)
- Built: Not flush-mounted
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
- Increased immunity: Yes; (increased immunity to interference (for conducted HF))
- Housing: Threaded design
- Weight [g]: 137,000
- Thread name M30 x 1.5
- Hysteresis: 1...15
- Connection / Terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 7...13 mm; cable gland: M20 X 1.5
- Correction factor (Glass): 0.4
- Correction factor (ceramic): 0.2
- Correction factor (PVC): 0.2
- Correction factor (water): 1
- Short-circuit-proof: No.
- Short-term current carrying capacity of the switching output [mA]: 1500; (20 ms / 0.5 Hz)
- Max. RESIDUAL CURRENT [MA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
- max. Voltage drop switch output AC [V]: 10
- max. Voltage drop switch output DC [V]: 8
- Minimum load current [mA]: 5
- MTTF: 468
- Real switching distance Sr [mm]: 15 ± 10 %
- Switching distance [mm]: 15
- Switching distance adjustable: Yes
- Switching frequency AC [Hz]: 25
- Switching frequency DC [Hz]: 40
- Switch point drift: -15...15
- Protection system: IP 65
- Protection class: II
- Overload-proof: No.
- Reverse polarity protected: No.
- Factory setting Switching distance [mm]: 15
- Product type
Sensor
- Type
KI0024
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
15 mm
- Outputs
Two-wire
- Enclosure material
PBT
- Model
Capacitive
- Installation type
non-shielded
- Size
M30
- Connector
Clip
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP65
- Length
125 mm
- Height
125 mm
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 125 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320201 ifm Electronic Sensor Capacitive KI0024 KI0024 M30 non-shielded Two-wire (Ø x H) 30 mm x 125 mm
User & Safety Instructions
User & Safety Instructions 3320201 ifm Electronic Sensor Capacitive KI0024 KI0024 M30 non-shielded Two-wire (Ø x H) 30 mm x 125 mm
Description
Ifm KI0024 capacitive sensor
