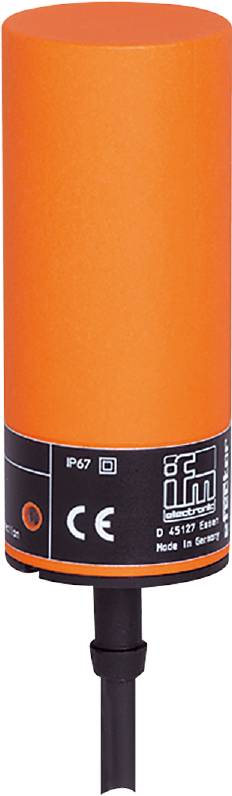

Image similar
ifm Electronic Sensor Inductive IB5096 IB5096 non-shielded PNP (Ø x L) 34 mm x 82 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
20 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Ifm IB5096 Inductive Sensor
- With PVC connection cable
- Plastic smooth sleeve against adhesion
- PBT-housing resistant to pickling agent
- For applications in pickling systems
- Well visible indication of the switching state
Technical specifications
- Dimensions [mm]: Ø 34 / L = 82
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...16.2
- Ambient temperature-1 [°C]: -25...80
- Short-circuit protection version: Synchronised
- Output function: Closer
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Built: Not flush-mounted
- Electrical version: PNP
- Cylindrical housing
- Weight [g]: 267,500
- Hysteresis: 1...15
- Cable: 2 m, PVC; 3 x 0.5 mm²
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 1853
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 20 ± 10 %
- Switching distance [mm]: 20
- Switching frequency DC [Hz]: 60
- Switch point drift: -10...10
- IP 67 protection
- Protection class: II
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IB5096
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
20 mm
- Outputs
PNP
- Enclosure material
PBTP
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
82 mm
- (Ø)
34 mm
- Dim
(Ø x L) 34 mm x 82 mm
- Content
1 pc(s)
- Switching frequency
60 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318844 ifm Electronic Sensor Inductive IB5096 IB5096 non-shielded PNP (Ø x L) 34 mm x 82 mm
User & Safety Instructions
User & Safety Instructions 3318844 ifm Electronic Sensor Inductive IB5096 IB5096 non-shielded PNP (Ø x L) 34 mm x 82 mm
Description
Ifm IB5096 Inductive Sensor
